Name: 36-288 Core Photoelectric Hybrid Fiber Cable Single/Multimode
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTW 8b1.3 +RVV1.5mm
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD

Certification: ISO/CE/ROSH

Model Number: GYXTW 8b1.3 +RVV1.5mm

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Photoelectric Hybrid Fiber Cable, 288 Core Hybrid Fiber Cable, Multimode Hybrid Fiber Cable


ITEM NO.:	GYTXW 8B1.3 +RVV1.5mm	Cooper Wire:	1.5 Mm²/2.5mm²
Jacket Color:	Black Or Customized	Jacket Material:	PE/LSZH
Armored Type:	Steel Tape	Strength Member:	Steel Wires

ITEM NO.:	GYTXW 8B1.3 +RVV1.5mm
Cooper Wire:	1.5 Mm²/2.5mm²
Jacket Color:	Black Or Customized
Jacket Material:	PE/LSZH
Armored Type:	Steel Tape
Strength Member:	Steel Wires

36-288 Core Photoelectric Hybrid Fiber Cable Single/Multimode

Photoelectric Hybrid Fiber Cable Singlemode Multimode 36 48 86 144 288 Core

Product Specifications

Attribute	Value
ITEM NO.	GYTXW 8B1.3 +RVV1.5mm
Cooper wire	1.5 mm²/2.5mm²
Jacket Color	Black or customized
Jacket Material	PE/LSZH
Armored Type	Steel Tape
Strength member	Steel wires

Product Description

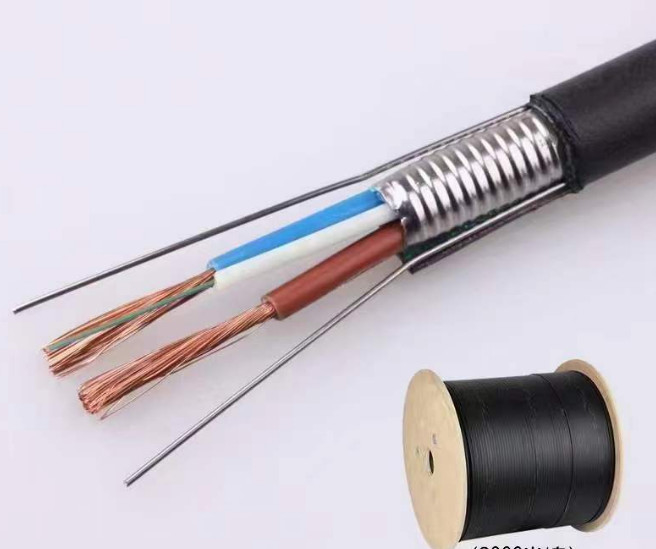

36/48/72/86/144/288 Core Composite Hybrid Optical Fiber Cable

This photoelectric composite cable combines singlemode and multimode fibers with power conductors in a single solution, offering significant advantages:

Compact design with small outer diameter and light weight reduces space requirements
Eliminates need for multiple separate cables with integrated solution
Reduces procurement, construction, and network deployment costs
Excellent bending performance and side pressure resistance
Supports multiple transmission technologies with high adaptability
Provides large bandwidth access while solving power supply challenges
Future-proof solution that avoids secondary wiring requirements

Applications: Telecommunication power supply systems, short distance communication system power supply.

Technical Parameters

Item	Unit	Specification
Fiber Type		G652D
Mode Field Diameter (1310nm)	μm	9.2±0.4
Mode Field Diameter (1550nm)	μm	10.4±0.8
Cladding diameter	μm	125.0±0.1
Cladding non-circularity	%	≤1.0
Core/cladding concentricity error	μm	≤0.5
Coating diameter	μm	245±7
Coating/cladding concentricity error	μm	≤12
Cable cut-off wavelength	μm	≤1260
Attenuation Coefficient (1310nm)	db/km	≤0.36
Attenuation Coefficient (1550nm)	db/km	≤0.22
Proof stress level	kpsi	≥100

Note: All other parameters meet standard ITU-T G.652 specifications.

Manufacturer Profile

Custom Order Process

Send your purchase requirements to cotton@fibercablepuls.com
Our sales team will confirm product specifications, packaging, quantity, and other details
Sign contract or Proforma Invoice
Production begins after deposit receipt
Shipping arrangements coordinated 2 weeks before production completion
