Composite Overhead OPGW Cable Loose Tube Stranded Single Mode 50 Square

Name: Composite Overhead OPGW Cable Loose Tube Stranded Single Mode 50 Square
Brand: guangzhou fiber cablepuls co ltd
SKU: OPGW-72B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD

Certification: ISO/CE/ROSH

Model Number: OPGW-72B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool ，Φ1200*750mm

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                Composite OPGW Cable, 50 Square OPGW Cable, Stranded OPGW Cable


Item No.:	OPGW-72B1.3	Fiber Count:	12/24/48/72/96/144 CORES
Outer /Inner Sheath Material:	AA/ACS Wire	Installation Method:	Overhead
Cable Length:	2km-6km Or As Customerized	Warranty Period:	25 Years

Item No.:	OPGW-72B1.3
Fiber Count:	12/24/48/72/96/144 CORES
Outer /Inner Sheath Material:	AA/ACS Wire
Installation Method:	Overhead
Cable Length:	2km-6km Or As Customerized
Warranty Period:	25 Years

Composite Overhead OPGW Cable Loose Tube Stranded Single Mode 50 Square

OPGW 50 Square Composite Overhead Ground Wire

Optical Fiber Cable Loose Tube Stranded Single Mode Opgw Fiber Optic Cable

Optical ground wire (OPGW) is a dual functioning cable.

It is designed to replace traditional static/shield/earth wires on overhead transmission lines with

the added benefit of containing optical fibers which can be used for telecommunications purposes.

OPGW must be capable of withstanding the mechanical stresses applied to overhead cables

by environmental factors such as wind and ice. OPGW must also be capable of handling

electrical faults on the transmission line by providing a path to ground

without damaging the sensitive optical fibers inside the cable.

The OPGW cable design is constructed of a fiber optic core

(with multiple sub-units depending on the fiber count) encased in a hermetically sealed

hardened aluminum pipe with a covering of one or more layers of steel and/or alloy wires.

Installation is very similar to the process used to install conductors,

although care must be taken to use the proper sheave or pulley sizes so as not to

cause damage or crush the cable. After installation, when the cable is ready to be spliced,

the wires are cut away exposing the central aluminum pipe which can easily

be ring-cut with a pipe cutting tool. The color-coded sub-units are preferred by most users

because they make splice box preparation very simple.

Parameters
No. of Core	2-42	44-72	74-84	86-96	98-108	110-120	122-132	134-144
OD(mm)	10.4	11.2	12.2	14.0	14.8	15.8	16.6	17.4
Cable Weight(kg/km	90	100	115	180	195	220	240	265

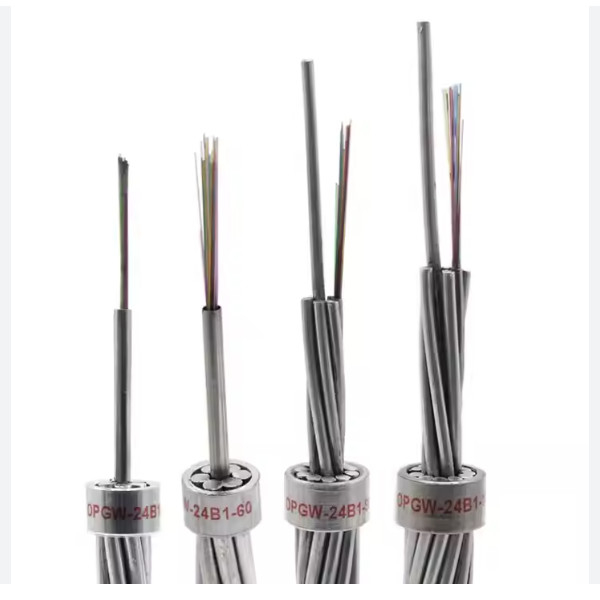

Composite Overhead OPGW Cable Loose Tube Stranded Single Mode 50 Square 0

Composite Overhead OPGW Cable Loose Tube Stranded Single Mode 50 Square 1

Production Supplier Profile
Composite Overhead OPGW Cable Loose Tube Stranded Single Mode 50 Square 3

How do I place an OEM or customized order?
1) Send your purchase intention to our email: cotton@fibercablepuls.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity,
and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.
5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
