Name: MGTSV Steel Tape Armored Fiber Optic Cable for Mining
Brand: guangzhou fiber cablepuls co ltd
SKU: MGTSV
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: MGTSV

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Mining Fiber Optic Cable, MGTSV Mining Fiber Optic Cable, Duct Mining Fiber Optic Cable


Item No.:	MGTSV	Armored Type:	Steel Tape
Fiber Type:	G.652D	Application:	Outdoor Duct Installation
Warranty Period:	25 Years	Jacket:	Blue Flame Retardant

Item No.:	MGTSV
Armored Type:	Steel Tape
Fiber Type:	G.652D
Application:	Outdoor Duct Installation
Warranty Period:	25 Years
Jacket:	Blue Flame Retardant

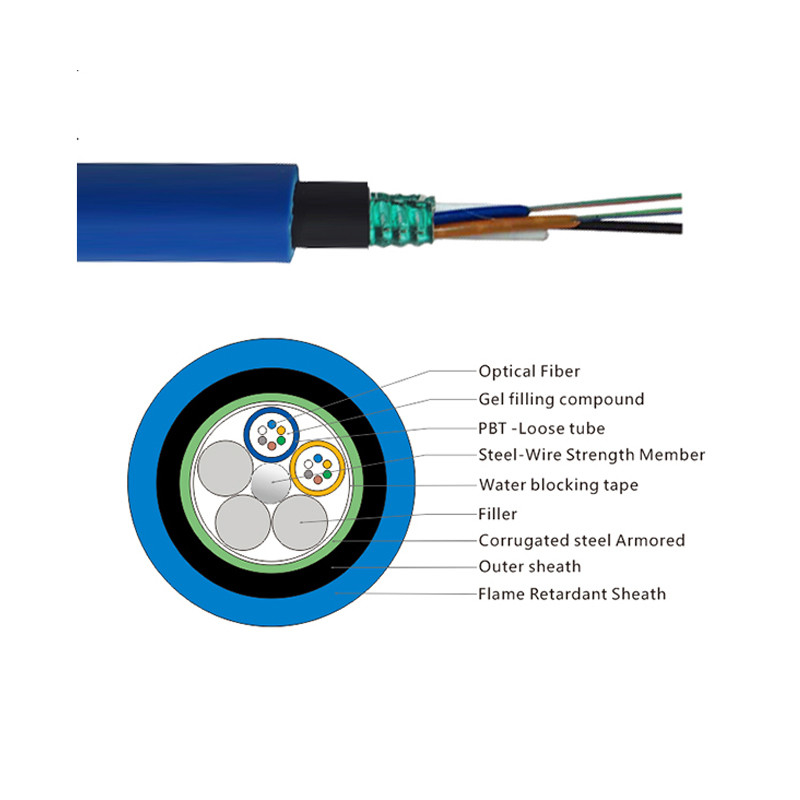

MGTSV Steel Tape Armored Fiber Optic Cable for Mining

Duct Fiber Optic Cable MGTSV Mining Fiber Optic Cable

Product Specifications

Attribute	Value
Item No.	MGTSV
Armored Type	Steel Tape
Fiber Type	G.652D
Application	Outdoor duct installation
Warranty Period	25 years
Jacket	Blue flame retardant

Product Description

Duct Fiber Optic Cable MGTSV Mining Use Fiber Optic Cable

Key Characteristics:

Specifically designed for coal, gold, iron ore and other mining applications
Flame retardant and rodent resistant properties for mine safety
Steel armor protection against rodent damage and bullet penetration
Double jacket structure provides superior moisture and crush resistance
Outer sheath is flame retardant for enhanced safety
Loose tube material offers excellent hydrolysis resistance
Superior waterproof performance for underground mine environments
Complies with Standard YD/T 901-2001 and IEC 60794-1

Technical Specifications

Cable Dimensions and Mechanical Properties

Cable Type	Tubes+Fillers	Cable Diameter (mm)	Cable Weight (Kg/km)	Tensile Strength Long/Short Term (N)	Crush Resistance Long/Short Term (N/100m)	Bending Radius Static/Dynamic (mm)
MGTSV-2～6	5	12.2	156	1000/2000	500/1500	15D/30D
MGTSV-62～72	6	13.8	210	1750/3500	500/1500	15D/30D
MGTSV-74～96	8	15.1	242	1750/3500	500/1500	15D/30D
MGTSV-98～120	10	17.2	280	1750/3500	500/1500	15D/30D
MGTSV-122～144	12	19.0	320	1750/3500	500/1500	15D/30D
MGTSV-146～216	18	19.0	320	1750/3500	500/1500	15D/30D

Fiber Optic Specifications (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter	1310nm 1550nm	μm 9.2±0.4 μm 10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.)	1310nm 1550nm 1380nm 1625nm	dB/km ≤0.35 dB/km ≤0.21 dB/km ≤0.35 dB/km ≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm 1550nm 1525-1575nm 1550nm 1480-1580nm	dB/km ≤0.04 dB/km ≤0.03 dB/km ≤0.05
11	Dispersion	1288-1339nm 1271-1360nm 1480-1580nm 1550nm	ps/(nm.km) ≥-3.5, ≤3.5 ps/(nm.km) ≥-5.3, ≤5.3 ps/(nm.km) ≤20 ps/(nm.km) ≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average	1310nm-1550	≤0.01dB

Ordering Information

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
Two weeks before production completion, we will notify you to arrange shipping
