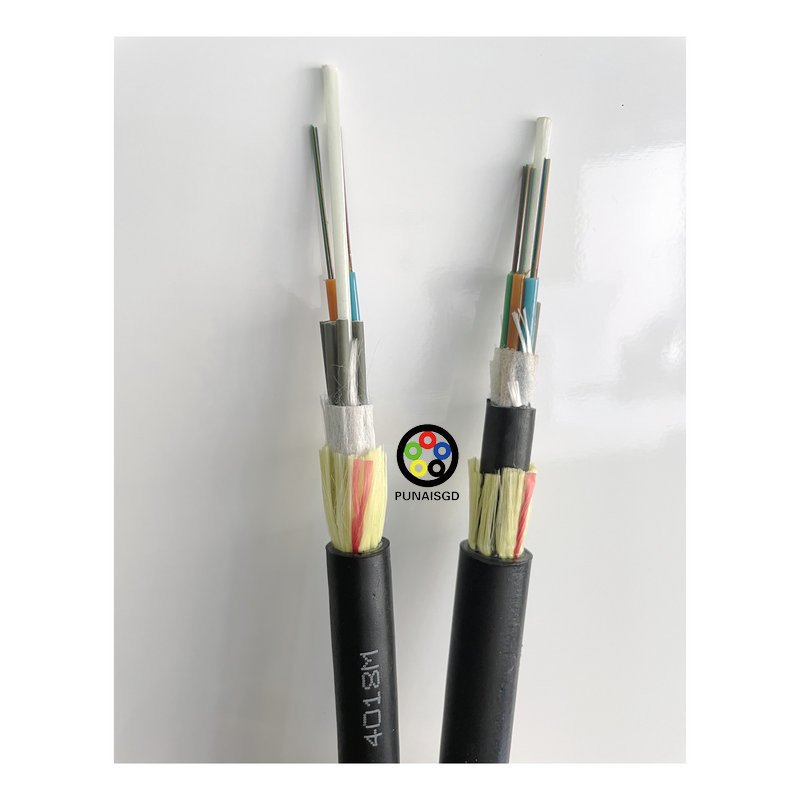

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY

Name: ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY
Brand: guangzhou fiber cablepuls co ltd
SKU: ADSS-LSZH-48B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD

Certification: ISO/CE/ROSH

Model Number: ADSS-LSZH-48B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 1km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25 days

Payment Terms: 30% TT as deposit, 70% Balance before shipping

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                GYTS ADSS Fiber Optic Cable, GYXTW ADSS Fiber Optic Cable, GYTA ADSS Fiber Optic Cable


Model Number:	ADSS-LSZH-48B1.3	Length:	2km/3km/4km
Fiber Count:	24/36/48/72/144	Jacket:	PE/DOUBLE JACKET
Colour:	Black

Model Number:	ADSS-LSZH-48B1.3
Length:	2km/3km/4km
Fiber Count:	24/36/48/72/144
Jacket:	PE/DOUBLE JACKET
Colour:	Black

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY

ADSS Fiber Optic Cable Factory Price GYXTW GYTS GYTA GYFTY

Product Description

The fibers, 250µm, are positioned in a loose tube made of a high modulus plastic.

The tubes are filled with a water-resistant filling compound.

A Fiber Reinforced Plastic (FRP)/Steel wire locates in the center of core as

a non-metallic strength member. The tubes (and fillers) are stranded around

the strength member into a compact and circular core.

After the cable core is filled with the filling compound to protect it from water ingress,

the cable is completed with a PE sheath

Standard

Standards: complies with Standard YD/T 901-2001as well as IEC 60794-1.

Features

1. Good mechanical and temperature performance

2. High strength loose tube that is hydrolysis resistant

3. Special tube filling compound ensure a critical protection of fiber

4. Crush resistance and flexibility

5. The following measures are taken to ensure the cable watertight:

6. Loose tube filling compound, 100% cable core filling

7. PSP/PAP enhancing moisture-proof

8.Steel wire used as the central strength member

STRUCTURE

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 3

Technical Data

Contents

Fibers

Item

Fibre Count

6|12|24

144

288

Loose Tube

Tubes*
Fbres/Tube

1x6 | 2x6
4x6

6x 8
4x12

6x12

8x12

12x12

24x12

Outer diameter (mm)

1.8

2.0

2.5

Adjustable (OEM)

1.5|2.0

1.8|2.3

2.1|2.3

Central
strength
member

Material

Glass Fbre Reinforced Plasticrod (GFRP)

Diameter (mm)

2.0

2.5

2.8

3.7

2.6

Adjustable (OEM)

1.8|2.3

2.5

2.8

3.7

2.6

PE coated diameter (mm)

4.2

7.4

4.8

Water
blocking

Material

Water blocking tape

Peripheral Strength

Material

Aramid Yarn

Outer Sheath

Thickness (mm)

1.8mm(1.5-2.0mm OEM)

Cable diameter(mm) Approx.

9.5

9.5|10

12.2

13.9

17.1

20.2

Cable diameter(mm) Adjustable (OEM)

8.0|8.5|9.0|10.5|11.0

Operating temperature range(℃)

From -40~+70

Max. span (m)

50m | 80m | 100m | 120m | 150m

Climate condition

No Ice,25m/s Max Wind Speed

MAT

Design according to customer requirements

Fiber Parameters
No.	Items			Unit	Specification
					G.652D
1	Mode Field Diameter		1310nm	μm	9.2±0.4
			1550nm	μm	10.4±0.8
2	Cladding Diameter			μm	125.0±1.0
3	Cladding Non-Circularity			%	≤1.0
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)	1310nm		dB/km	≤0.35
		1550nm		dB/km	≤0.21
		1380nm		dB/km	≤0.35
		1625nm		dB/km	≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm		dB/km	≤0.04
		1550nm 1525-1575nm		dB/km	≤0.03
		1550nm 1480-1580nm		dB/km	≤0.05
11	Dispersion	1288-1339nm		ps/(nm.km)	≥-3.5, ≤3.5
		1271-1360nm		ps/(nm.km)	≥-5.3, ≤5.3
		1480-1580nm		ps/(nm.km)	≤20
		1550nm		ps/(nm.km)	≤18
12	Zero dispersion wavelength			Nm	1300-1324
13	Zero dispersion slope			ps/(nm2•km)	≤0.092
14	Typical value			ps/(nm2•km)	0.04
15	Largest individual fiber			Ps/√ km	0.2
16	Link design values			Ps/√ km	0.1
17	Two way average			1310nm-1550	≤0.01dB

Production Transportation Process

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 4

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 5

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 6

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 8

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 10

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 12

Our Factory

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 13

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 14

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 15

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 16

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 17

ADSS Fiber Optic Cable GYXTW GYTS GYTA GYFTY 18

FAQ

1. Why choose us?
We are manufacturer, Located in Guangzhou, China, started from 2011, sell to Domestic Market(100.00%).

There are total about 11-50
people in our factory.
2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
3.Can you send products to my country?
Sure, we can. If you do not have your own ship forwarder, we can help you.
4. Can you do OEM for me?
We accept all OEM orders,just contact us and give me your design.we will offer you a reasonable price and

make samples for you.

5. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW；
Accepted Payment Currency:USD,EUR,JPY,CAD,AUD,HKD,GBP,CNY,CHF;
Accepted Payment Type: T/T,L/C,D/P D/A,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
