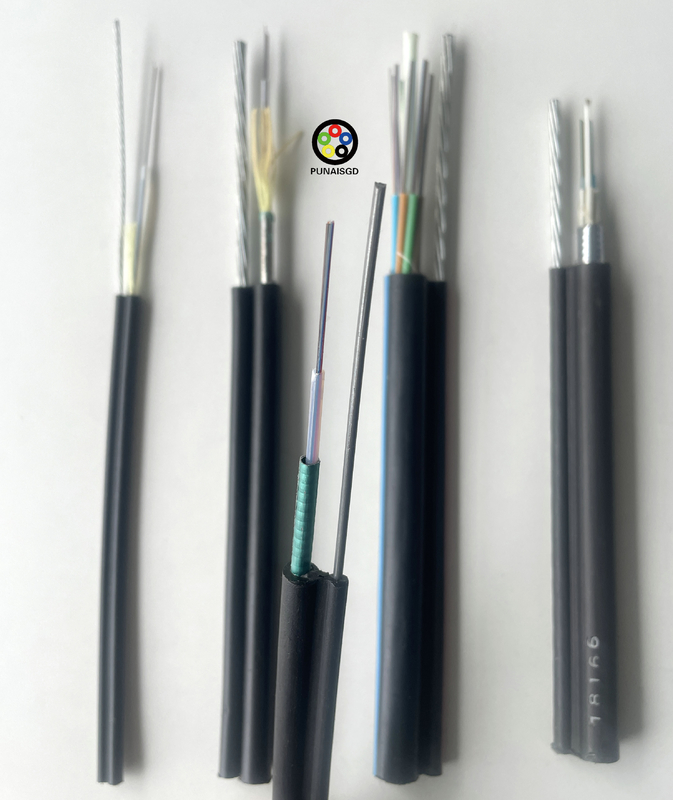

Name: GYTC8S Aerial Figure 8 Fiber Optic Cable G652D Outdoor Self-Supported
Brand: guangzhou fiber cablepuls co ltd
SKU: gyxtc8s-12B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: gyxtc8s-12B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Outdoor Aerial Figure 8 Fiber Optic Cable, GYXTC8S Aerial Figure 8 Fiber Optic Cable


Item NO.:	Gyxtc8s-12b1.3	TYPE:	Mini Fig.8 Shape
Loose Tube Material:	PBT	Strength Member:	Aramid Yarn
Application:	OVERHEAD	Fiber:	G652D

Item NO.:	Gyxtc8s-12b1.3
TYPE:	Mini Fig.8 Shape
Loose Tube Material:	PBT
Strength Member:	Aramid Yarn
Application:	OVERHEAD
Fiber:	G652D

GYTC8S Aerial Figure 8 Fiber Optic Cable G652D Outdoor Self-Supported

Aerial Figure 8 Fiber Optic Cable Outdoor Self-Supported Fiber Optical Cable GYXTC8S GYTC8S

Product Specifications

Attribute	Value
Item NO.	gyxtc8s-12b1.3
TYPE	mini Fig.8 shape
Loose Tube Material	PBT
Strength member	aramid yarn
Application	OVERHEAD
fiber	G652D

Product Description

The GYTC8S is a high-performance fiber optic cable designed for outdoor and industrial applications, providing reliable data transmission in demanding environments.

Construction Details

Core: Tight-buffered optical fibers (single-mode or multimode fibers)
Strength Member: Steel wire armor (SWA) or steel tape for enhanced protection
Water-Blocking Layer: Gel or water-blocking tape to prevent moisture penetration
Outer Jacket: Durable UV-resistant material (LSZH, PE, or PVC)

Technical Specifications

Parameter	Specification
Fiber Count	2 to 48 fibers (depending on design)
Fiber Type	Single-mode (SM) or Multimode (MM)
Outer Diameter	8.0 to 10.0 mm (varies by fiber count)
Weight	80-120 kg/km
Tensile Strength (Long-term)	800-1000 N
Operating Temperature	-40°C to +70°C
Storage Temperature	-40°C to +70°C
Min. Bend Radius	20 x cable diameter
Water Blocking	Gel-filled or tape technology
Armor Type	Steel tape armor (SWA) or steel wire

Order Information

Fiber count	6 core, 8 core, 12 core
Fiber Type	G652D/G657A1/G657A2
Crush Resistance (Long term)	300 (N/100MM)
Crush Resistance (Short term)	1000(N/100MM)
Overall Diameter	7.8x4mm
Sheath	PE
Strand Steel wire	7*0.8mm
Sample Status	In stock

Supplier Information

Custom Order Process

How to place an OEM or customized order:

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications and requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will begin production
2 weeks before production completion, we will notify you to arrange shipping
