Name: Air Blown Micro Cable GCYFY-72B1.3 G652D/G657a1 Fiber Optic
Brand: guangzhou fiber cablepuls co ltd
SKU: GCYFY-72B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GCYFY-72B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                            Air Blown Micro Fiber Optical Cable, Air Blown Micro Cable Specification, Micro Fiber Optical Cable


Model:	GCYFY-72B1.3	Item:	Air Blown Micro Cable
Jacket Material:	PE Sheath	Fiber Type:	G.652D/G657a1
Cable Color:	Black/ Orange

Model:	GCYFY-72B1.3
Item:	Air Blown Micro Cable
Jacket Material:	PE Sheath
Fiber Type:	G.652D/G657a1
Cable Color:	Black/ Orange

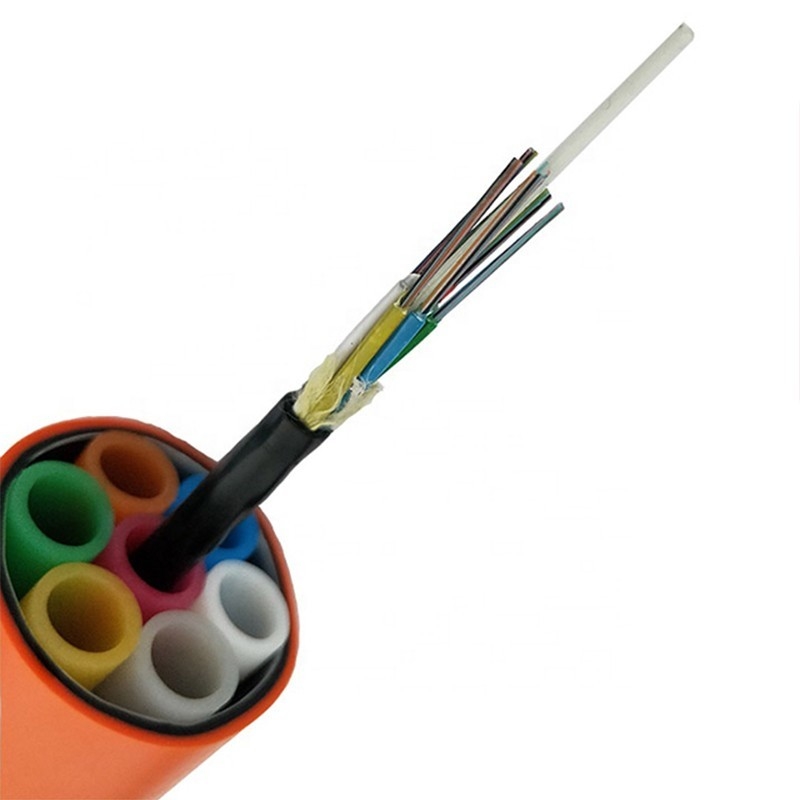

Air Blown Micro Cable GCYFY-72B1.3 G652D/G657a1 Fiber Optic

Air Blown Micro Fiber Optical Cable Specification

Product Specifications

Model	GCYFY-72B1.3
Item	Air blown micro cable
Jacket Material	PE sheath
Fiber Type	G.652D/G657a1
Cable Color	Black/Orange

Product Description

This Micro Duct Optical Fiber Cable, available in various fiber counts, is designed for durability and high performance in various telecommunication applications.

Fiber Types: SM G652D
Available Fiber Counts: 04F, 08F, 12F, 24F, 48F, 96F

Optical Specifications

Parameter	Specification
Attenuation @ 1310 nm	≤ 0.38 dB/km
Attenuation @ 1550 nm	≤ 0.25 dB/km
Zero Dispersion Wavelength	1300-1324 nm
Chromatic Dispersion @ 1550 nm	≤ 18 ps/nm.km

Physical and Mechanical Properties

Characteristic	Specification
Max. Tensile Strength	700 N
Crush Resistance	500 N/10 cm
Impact Resistance	10 Nm
Min. Bending Radius (Long Term)	20D (D = Cable Diameter)
Operating Temperature Range	-20°C to +60°C
Nominal Cable Diameter	6.0 ± 0.5 mm

Construction Details

Central Strength Member: Fiber Reinforced Plastic (FRP) with a diameter of 1.6 mm ± 0.1 mm
Water Blocking Elements: Water blocking yarns inside the core
Outer Jacket: Black HDPE, minimum thickness 0.5 mm
Core Identification: Blue, Orange, Green, Brown, Slate, White, and Black fillers
Loose Tube: PBT filled with thixotropic jelly

Key Characteristics

Small overall diameter, lightweight, moderate hardness, suitable for air-blow installation
Non-metallic structure, no need for grounding

Technical Data Sheet

Fiber Count	CSM Diameter	Nominal Thickness of Outer Jacket	Cable Diameter	Cable Weight	Bending Radius
2-12	1.4/1.4	1.6	3.5	11	10D/20D
14-24	1.4/1.4	1.6	4.1	14	10D/20D
26-72	1.4/1.4	1.6	5.0	22	10D/20D
74-96	1.4/1.4	1.6	5.9	33	10D/20D
98-120	1.4/1.4	1.6	7.0	43	10D/20D
122-144	1.6/1.6	1.6	7.7	52	10D/20D
146-216	1.6/1.6	1.6	7.9	52	10D/20D
218-288	1.6/1.6	1.6	9.0	72	10D/20D

Fiber Specifications

Item	Unit	Specification
Fiber Type		G652D
Mode Field Diameter (1310nm)	μm	9.2±0.4
Mode Field Diameter (1550nm)	μm	10.4±0.8
Cladding Diameter	μm	125.0±0.1
Cladding Non-circularity	%	≤1.0
Core/Cladding Concentricity Error	μm	≤0.5
Coating Diameter	μm	245±7
Coating/Cladding Concentricity Error	μm	≤12
Cable Cut-off Wavelength	μm	≤1260
Attenuation Coefficient (1310nm)	db/km	≤0.36
Attenuation Coefficient (1550nm)	db/km	≤0.22
Proof Stress Level	kpsi	≥100

Note: Other parameters meet standard ITU-T G.652

Cable Marking & Fiber Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

The marking is printed every 1 meter; "G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.

Also can according to client cable marking.

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information
Sign the contract or Proforma Invoice
After receiving your deposit, we will start to arrange the production
2 weeks before the completion of production, we will notify you to start contacting shipping
