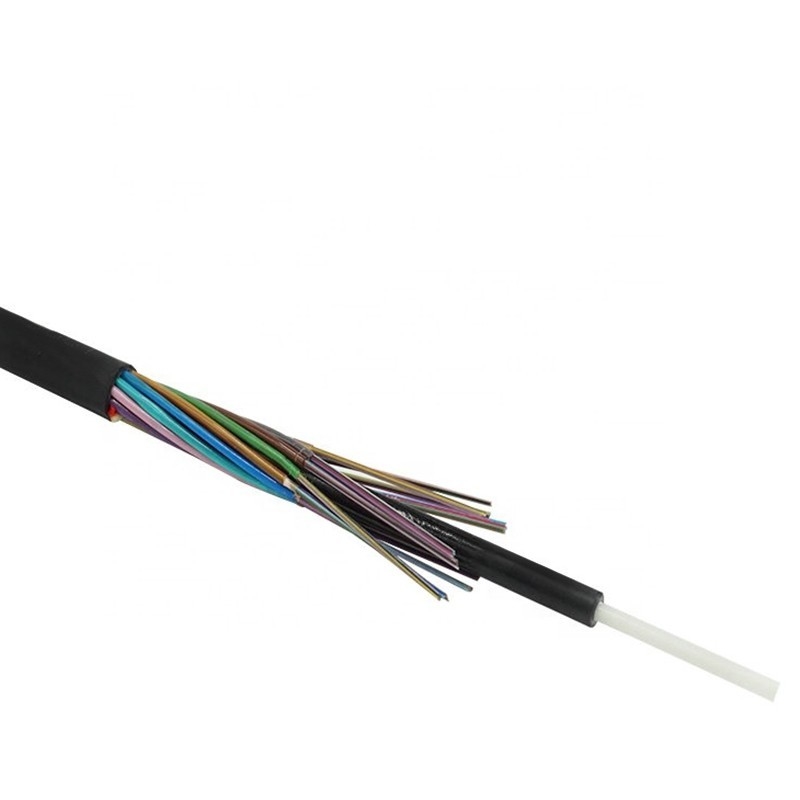

GCYFY-96B1.3 Air Blown Micro Cable G.652D PE Sheath

Name: GCYFY-96B1.3 Air Blown Micro Cable G.652D PE Sheath
Brand: guangzhou fiber cablepuls co ltd
SKU: GCYFY-96B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GCYFY-96B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                            Air Blown Micro Cable, High Performance Micro Cable


Model:	GCYFY-96B1.3	Item:	Air Blown Micro Cable
Jacket Material:	PE Sheath	Fiber Type:	G.652D/G657a1
Cable Color:	Black/ Orange

Model:	GCYFY-96B1.3
Item:	Air Blown Micro Cable
Jacket Material:	PE Sheath
Fiber Type:	G.652D/G657a1
Cable Color:	Black/ Orange

GCYFY-96B1.3 Air Blown Micro Cable G.652D PE Sheath

Air Blown Micro Cable High Performance Micro Cable

Product Specifications

Attribute	Value
Model	GCYFY-96B1.3
Item	air blown micro cable
Jacket Material	PE sheath
Fiber Type	G.652D/G657a1
Cable Color	black/orange

Product Description

The Air Blown Micro Cable is designed for FTTH network distribution segments, connecting branch points to subscriber access points via air blowing installation. This high-performance solution is ideal for backbone networks, metropolitan area networks, and access networks.

This innovative technology enhances traditional fiber optic systems, enabling rapid fiber network deployment with flexible, secure, and cost-effective cabling. The system includes micro-tubes, micro-cables, fittings, and air blowing equipment.

Available in various fiber counts, this Micro Duct Optical Fiber Cable delivers superior bandwidth and data transmission compared to traditional metal conductor cables.

Fiber Types: SM G652D
Available Fiber Counts: 04F, 08F, 12F, 24F, 48F, 96F

Optical Specifications

Parameter	Specification
Attenuation @ 1310 nm	≤ 0.38 dB/km
Attenuation @ 1550 nm	≤ 0.25 dB/km
Zero Dispersion Wavelength	1300-1324 nm
Chromatic Dispersion @ 1550 nm	≤ 18 ps/nm.km

Physical and Mechanical Properties

Characteristic	Specification
Max. Tensile Strength	700 N
Crush Resistance	500 N/10 cm
Impact Resistance	10 Nm
Min. Bending Radius (Long Term)	20D (D = Cable Diameter)
Operating Temperature Range	-20°C to +60°C
Nominal Cable Diameter	6.0 ± 0.5 mm

Construction Details

Central Strength Member: Fiber Reinforced Plastic (FRP) with a diameter of 1.6 mm ± 0.1 mm.

Water Blocking Elements: Water blocking yarns inside the core.

Outer Jacket: Black HDPE, minimum thickness 0.5 mm.

Core Identification: Blue, Orange, Green, Brown, Slate, White, and Black fillers
Loose Tube: PBT filled with thixotropic jelly

Technical Data Sheet

Fiber count	CSM diameter	Nominal thickness of outer jacket	Cable diameter	Cable weight	Bending radius
2-12	1.4/1.4	1.6	3.5	11	10D/20D
14-24	1.4/1.4	1.6	4.1	14	10D/20D
26-72	1.4/1.4	1.6	5.0	22	10D/20D
74-96	1.4/1.4	1.6	5.9	33	10D/20D
98-120	1.4/1.4	1.6	7.0	43	10D/20D
122-144	1.6/1.6	1.6	7.7	52	10D/20D
146-216	1.6/1.6	1.6	7.9	52	10D/20D
218-288	1.6/1.6	1.6	9.0	72	10D/20D

Fiber Specifications

Item	Unit	Specification
Fiber Type		G652D
Mode field Diameter @ 1310nm	μm	9.2±0.4
Mode field Diameter @ 1550nm	μm	10.4±0.8
Cladding diameter	μm	125.0±0.1
Cladding non-circularity	%	≤1.0
Core/cladding concentricity error	μm	≤0.5
Coating diameter	μm	245±7
Coating/cladding concentricity error	μm	≤12
Cable cut-off wavelength	μm	≤1260
Attenuation Coefficient @ 1310nm	db/km	≤0.36
Attenuation Coefficient @ 1550nm	db/km	≤0.22
Proof stress level	kpsi	≥100

Note: Other parameters meet standard ITU-T G.652

Cable Marking & Fibers Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm
*The marking is printed every 1 meter
**"G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.

Custom cable marking available according to client requirements.

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications, packaging, printing, quantity, and other requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will arrange production
2 weeks before production completion, we will notify you to arrange shipping
