24-288 Fiber Duct Cable GYFTY Non-Armored Outdoor PE Jacket

Name: 24-288 Fiber Duct Cable GYFTY Non-Armored Outdoor PE Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTY
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTY

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    24fo Duct Cable, 48fo Duct Cable, Fiber Optic Non Armored Cable


Warranty Period:	25 Years	Jacket Color:	Black
Jacket Material:	PE/LSZH	Fiber Type:	G.652D
Crush Resistance:	Long Term: 300N/100mm, Short Term: 1000N/100mm	Tensile Strength:	Long Term: 600N, Short Term: 1500N
Storage Temperature:	-40℃ To +70℃	Outer Jacket Material:	HDPE
Cable Color:	Black	Cable Diameter:	12.5 Mm
Armored Type:	NONE	Application:	Outdoor Duct Installation
Fiber Count:	24/48/96/144/288	Cooper Wire:	2.5mm² /1.5 Mm²

Warranty Period:	25 Years
Jacket Color:	Black
Jacket Material:	PE/LSZH
Fiber Type:	G.652D
Crush Resistance:	Long Term: 300N/100mm, Short Term: 1000N/100mm
Tensile Strength:	Long Term: 600N, Short Term: 1500N
Storage Temperature:	-40℃ To +70℃
Outer Jacket Material:	HDPE
Cable Color:	Black
Cable Diameter:	12.5 Mm
Armored Type:	NONE
Application:	Outdoor Duct Installation
Fiber Count:	24/48/96/144/288
Cooper Wire:	2.5mm² /1.5 Mm²

24-288 Fiber Duct Cable GYFTY Non-Armored Outdoor PE Jacket

Duct Cable OEM/ODM 24fo 48fo Fibra Optica Tendido Ducto Aereo Fiber Optic Non-Armored Cable GYFTY

Product Specifications

Attribute	Value
Warranty Period	25 years
Jacket Color	Black
Jacket Material	PE/LSZH
Fiber Type	G.652D
Crush Resistance	Long Term: 300N/100mm, Short Term: 1000N/100mm
Tensile Strength	Long Term: 600N, Short Term: 1500N
Storage Temperature	-40℃ to +70℃
Outer Jacket Material	HDPE
Cable Color	Black
Cable Diameter	12.5 mm
Armored Type	NONE
Application	Outdoor duct installation
Fiber Count	24/48/96/144/288
Cooper wire	2.5mm² /1.5 mm²

Product Description

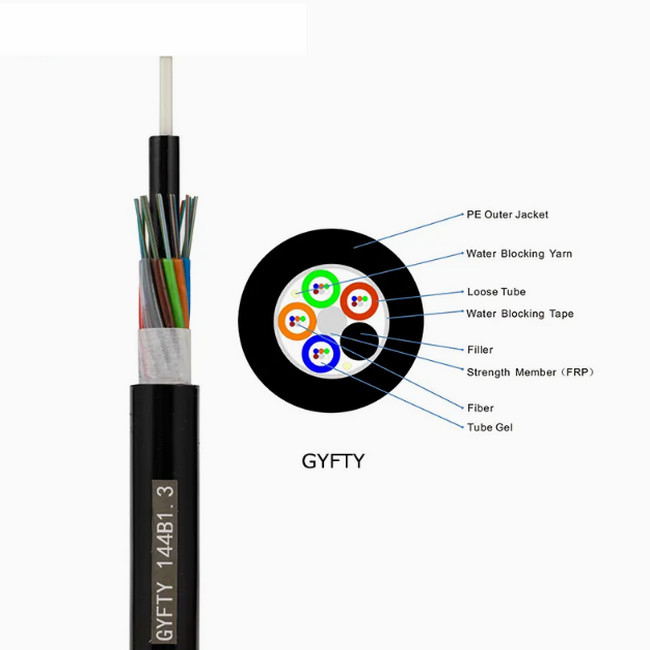

The 2-288 fibers are positioned in PBT loose tubes filled with gel. Tubes (and fillers) are stranded around the non-metallic strength member (FRP) to form the cable core. Then the cable core is filled with the cable jelly to protect it from water penetration. Finally a PE jacket is extruded.

Key Features:

Good mechanical and thermal performance
FRP as the central strength member
Hydrolysis resistant loose tube
Tube filling gel ensures critical protection of fiber
Stranded compact structure eliminating contraction of tubes
Rugged, durable PE jacket protects against UV radiation, fungus etc.
Non metallic, light in weight, convenient for application with power lines and lightning-prone area

Technical Specifications

Fiber Counts	2-30	32-36	38-60	62-72	74-96	98-120	122-144	146-216	218-288
Max.fiber counts per tube	6	6	12	12	12	12	12	12	12
Units(Tubes or Fillers)	6	6	6	6	8	10	12	18	24
Cable Diameter(mm)	9.8	9.8	10.7	10.7	12.0	13.4	14.9	15.3	17.3
Weight(Kg/km)	78	78	93	93	117	146	180	185	240

Cable Marking & Fiber Colors

COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

The marking is printed every 1 meter; "G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.

Also can according to client cable marking.

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm the product specification, packaging, printing, quantity, and other specific information
Sign the contract or Proforma Invoice
After receiving your deposit, we will start to arrange the production
2 weeks before the completion of production, we will notify you to start contacting shipping
