GYFTY Non-Metallic Duct Cable 24-288 Fibers PE/LSZH Jacket

Name: GYFTY Non-Metallic Duct Cable 24-288 Fibers PE/LSZH Jacket
Brand: guangzhou fiber cablepuls co ltd
SKU: GYFTY-32b1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYFTY-32b1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                    Non-Metallic Duct Cable, GYFTY Duct Cable, Non-Armored Duct Cable


Warranty Period:	25 Years	Jacket Color:	Black
Jacket Material:	PE/LSZH	Fiber Type:	G.652D
Crush Resistance:	Long Term: 300N/100mm, Short Term: 1000N/100mm	Tensile Strength:	Long Term: 600N, Short Term: 1500N
Storage Temperature:	-40℃ To +70℃	Outer Jacket Material:	HDPE
Cable Color:	Black	Cable Diameter:	12.5 Mm
Armored Type:	NONE	Application:	Outdoor Duct Installation
Fiber Count:	24/48/96/144/288	Cooper Wire:	2.5mm² /1.5 Mm²

Warranty Period:	25 Years
Jacket Color:	Black
Jacket Material:	PE/LSZH
Fiber Type:	G.652D
Crush Resistance:	Long Term: 300N/100mm, Short Term: 1000N/100mm
Tensile Strength:	Long Term: 600N, Short Term: 1500N
Storage Temperature:	-40℃ To +70℃
Outer Jacket Material:	HDPE
Cable Color:	Black
Cable Diameter:	12.5 Mm
Armored Type:	NONE
Application:	Outdoor Duct Installation
Fiber Count:	24/48/96/144/288
Cooper Wire:	2.5mm² /1.5 Mm²

GYFTY Non-Metallic Duct Cable 24-288 Fibers PE/LSZH Jacket

Duct Non-Metallic Non-Armored Cable Dielectric Loose Tube Cable GYFTY

Product Specifications

Warranty Period	25 years
Jacket Color	Black
Jacket Material	PE/LSZH
Fiber Type	G.652D
Crush Resistance	Long Term: 300N/100mm, Short Term: 1000N/100mm
Tensile Strength	Long Term: 600N, Short Term: 1500N
Storage Temperature	-40℃ to +70℃
Outer Jacket Material	HDPE
Cable Diameter	12.5 mm
Armored Type	NONE
Application	Outdoor duct installation
Fiber Count	24/48/96/144/288
Cooper wire	2.5mm² /1.5 mm²

Product Overview

The GYFTY Dielectric Loose Tube Cable features non-metal strength members and filler-protected loose tube fibers, offering excellent anti-electromagnetic interference capabilities.

Key Features

Non-metal strength member for superior anti-electromagnetic performance
Filler protects loose tube fibers
Ideal for outdoor distribution and trunk power transmission systems
Suitable for access networks and local networks in high EMI environments

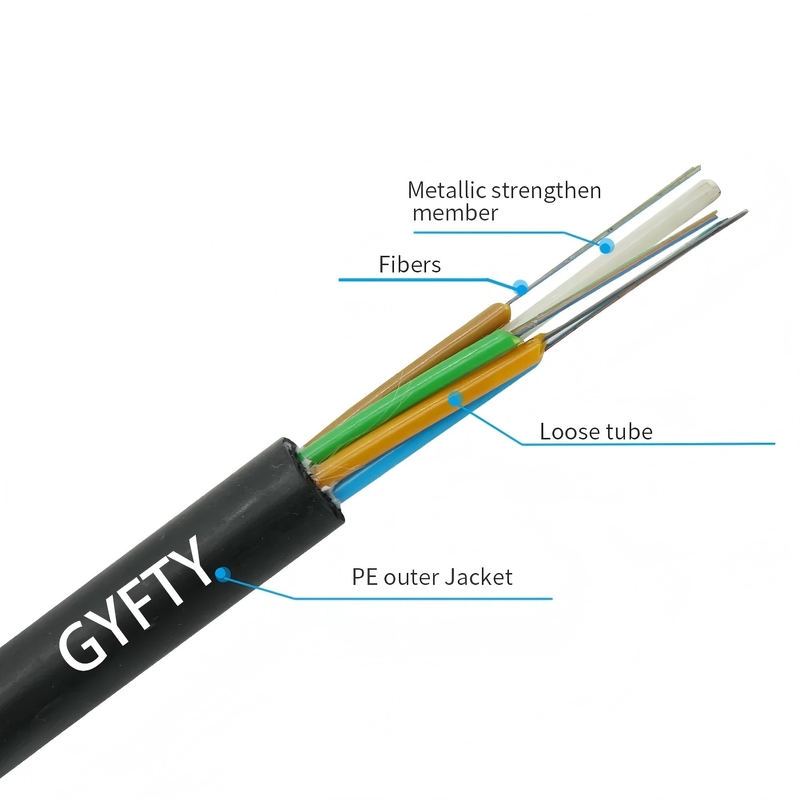

In the GYFTY cable, single-mode/multimode fibers are positioned in high modulus plastic loose tubes that strand around a non-metallic central strength member (FRP) into a compact, circular cable core. For high fiber count cables, the strength member is covered with polyethylene (PE), with water-blocking materials distributed in the cable core interstices.

Technical Specifications

Part code	GYFTY XXXF
Number of Fibers	8/12/24/36/48 \| 72 \| 96 \| 144
Number of fiber in tube	8/6/6/12/12 \| 12 \| 12 \| 12
Number of loose tube	1/2/4/3/4 \| 6 \| 8 \| 12
Central strength member	FRP \| FRP \| FRP \| FRP+ PE Coated
Loose tube material	PBT
Outer sheath material	PE
Cable nominal diameter (mm ±0.2)	9.5 \| 10.0 \| 11 \| 12.4
Max. working tension (N)	2100 \| 2400 \| 2600 \| 3000
Max. crush resistance	2000N (Short term) / 1000N (Long term)
Min. bending radius	20x cable OD (full load) \| 15x cable OD (no load)
Temperature range	Installation: -0°C to +50°C \| Operation: -10°C to +70°C

Cable Marking & Fiber Colors

Standard marking includes: COMPANY Fiber cable name N*cores G.652D 2024 XXXXm
*Marking printed every 1 meter. "G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.

Custom marking available according to client requirements.

Ordering Information

Send purchase inquiry to cotton@fibercablepuls.com
Our sales team will confirm specifications, packaging, and quantity
Sign contract or Proforma Invoice
Production begins after deposit receipt
Shipping coordination begins 2 weeks before production completion
