Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYFTY-64b1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km

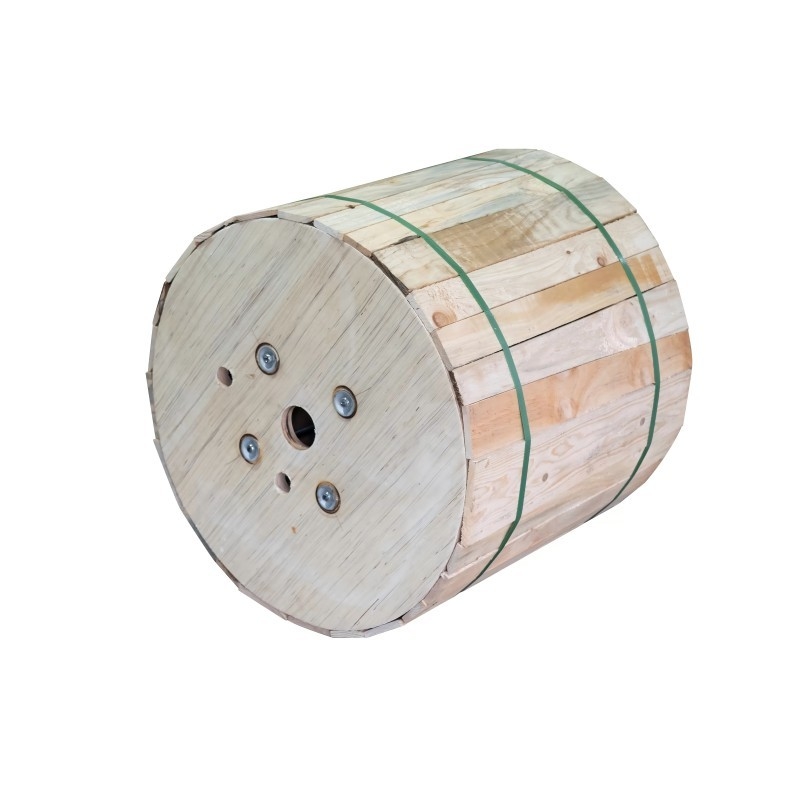

Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Warranty Period:
|
25 Years
|
Jacket Color:
|
Black
|
Jacket Material:
|
PE/LSZH
|
Fiber Type:
|
G.652D
|
Crush Resistance:
|
Long Term: 300N/100mm, Short Term: 1000N/100mm
|
Tensile Strength:
|
Long Term: 600N, Short Term: 1500N
|
Storage Temperature:
|
-40℃ To +70℃
|
Outer Jacket Material:
|
HDPE
|
Cable Color:
|
Black
|
Cable Diameter:
|
12.5 Mm
|
Armored Type:
|
NONE
|
Application:
|
Outdoor Duct Installation
|
Fiber Count:
|
24/48/96/144/288
|
Cooper Wire:
|
2.5mm² /1.5 Mm²
|
|
Warranty Period:
|
25 Years
|
|
Jacket Color:
|
Black
|
|
Jacket Material:
|
PE/LSZH
|
|
Fiber Type:
|
G.652D
|
|
Crush Resistance:
|
Long Term: 300N/100mm, Short Term: 1000N/100mm
|
|
Tensile Strength:
|
Long Term: 600N, Short Term: 1500N
|
|
Storage Temperature:
|
-40℃ To +70℃
|
|
Outer Jacket Material:
|
HDPE
|
|
Cable Color:
|
Black
|
|
Cable Diameter:
|
12.5 Mm
|
|
Armored Type:
|
NONE
|
|
Application:
|
Outdoor Duct Installation
|
|
Fiber Count:
|
24/48/96/144/288
|
|
Cooper Wire:
|
2.5mm² /1.5 Mm²
|
GYFTY fiber optic cable is an all-dielectric, non-metallic cable designed for outdoor duct and aerial installations in power transmission systems and high electromagnetic interference environments. Its dielectric construction provides excellent lightning protection.
| Attribute | Value |
|---|---|
| Warranty Period | 25 years |
| Jacket Color | Black |
| Jacket Material | PE/LSZH |
| Fiber Type | G.652D |
| Crush Resistance | Long Term: 300N/100mm, Short Term: 1000N/100mm |
| Tensile Strength | Long Term: 600N, Short Term: 1500N |
| Storage Temperature | -40℃ to +70℃ |
| Outer Jacket Material | HDPE |
| Cable Diameter | 12.5 mm |
| Application | Outdoor duct installation |
| Part code | GYFTY XXXF |
|---|---|
| Number of Fibers | 8/12/24/36/48/72/96/144 |
| Number of fiber in tube | 6/8/12 |
| Number of loose tube | 1-12 |
| Central strength member | FRP (FRP+PE Coated for high fiber counts) |
| Loose tube material | PBT |
| Additional strength | Fiberglass yarn |
| Max. working tension | 2100-3000N |
| Max. crush resistance | 2000N (Short term) / 1000N (Long term) |
| Min. bending radius | 20x cable OD (loaded), 15x cable OD (unloaded) |
| Temperature range | Installation: -0°C to +50°C, Operation: -10°C to +70°C |
Standard marking includes: COMPANY Fiber cable name N*cores G.652D 2024 XXXXm
Marking is printed every 1 meter. "G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.
Custom markings available according to client requirements.
