GYTA33 Anti Rodent Fiber Optic Cable 2-72 Cores Underwater

Name: GYTA33 Anti Rodent Fiber Optic Cable 2-72 Cores Underwater
Brand: guangzhou fiber cablepuls co ltd
SKU: GYTA33-48B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD

Certification: ISO/CE/ROSH

Model Number: GYTA33-48B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiate

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    GYTA33 Anti Rodent Fiber Optic Cable, Underwater Anti Rodent Fiber Optic Cable


Item No:	GYFTY33-24B1.3/12B1.3	Rodent Protection:	Steel Wires Around
Jacket Color:	Black PE	Fiber Type:	G.652D
Application:	Underwater Display	Armored:	Steel Wires Around

Item No:	GYFTY33-24B1.3/12B1.3
Rodent Protection:	Steel Wires Around
Jacket Color:	Black PE
Fiber Type:	G.652D
Application:	Underwater Display
Armored:	Steel Wires Around

GYTA33 Anti Rodent Fiber Optic Cable 2-72 Cores Underwater

Anti Rodent Fiber Optic Cable GYTA33 Underwater Optical Fiber Cable (2-72 Cores)

Product Specifications

Item No	GYFTY33-24B1.3/12B1.3
Rodent Protection	Steel wires around
Jacket Color	Black PE
Fiber Type	G.652D
Application	Underwater display
Armored	Steel wires around

Product Description

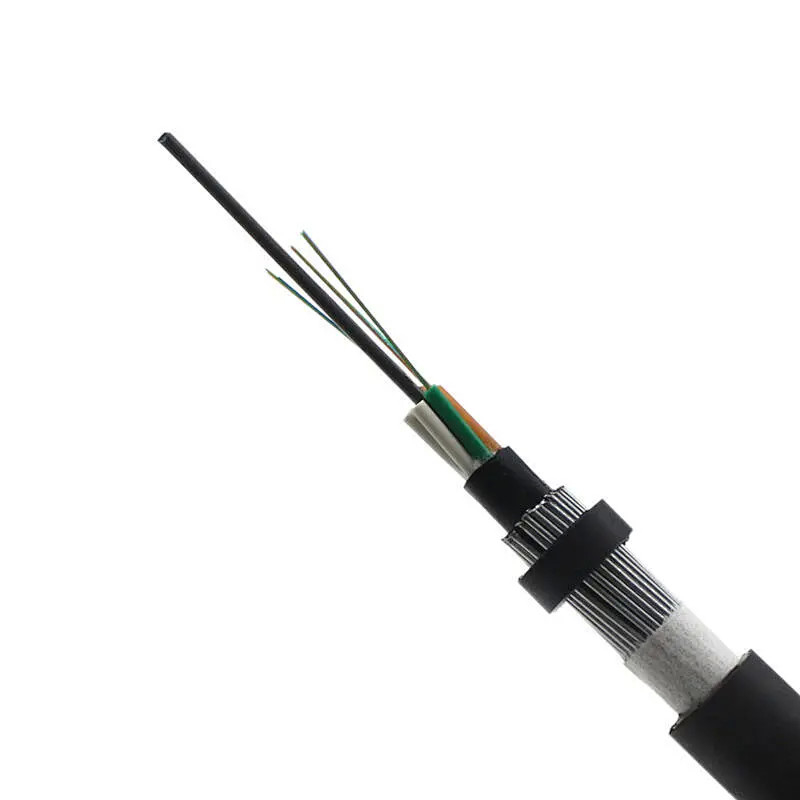

The underwater fiber cable GYTA33 (2-72 fibers) features a central steel strength member, jelly filling, loose tube fiber containment with PP filler (when required), water blocking jelly, copolymer coated aluminum tape, PE inner sheath, and steel wire armor with PE outer sheath. Utilizes G652D single-mode fiber with customizable specifications available upon request.

Key Features

Low attenuation and dispersion for superior signal quality
Precision-engineered design with controlled excess length for optimal mechanical and environmental performance
Steel wire armor and dual sheath provide exceptional resistance to tensile stress, side pressure, moisture, and animal damage
LSZH flame-retardant sheath material available in GYTZA33 model

Applications

Laying Methods: Direct buried & underwater installation
Usage Scenarios: Long-distance communication, local trunk lines, CATV & computer network systems

Product Images

Technical Specifications

Cable Data

Fiber Count	Structure	Diameter (mm)	Weight (kg/km)	Tensile (N) Long/Short term	Crush (N) Long/Short term	Bending Radius (mm) Static/Dynamic
2-30	1+5	12.8	268	4000/10000	3000/5000	12.5D/25D
32-36	1+6	13.2	287	4000/10000	3000/5000	12.5D/25D
38-60	1+5	13.9	318	4000/10000	3000/5000	12.5D/25D
62-72	1+6	14.2	334	4000/10000	3000/5000	12.5D/25D

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm/1550nm)	μm	9.2±0.4 / 10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5

Supplier Profile

Custom Order Process

Send purchase requirements to cotton@fibercablepuls.com
Our sales team will confirm product specifications, packaging, quantity, and other details
Sign contract or Proforma Invoice
Production begins after deposit receipt
Shipping coordination starts 2 weeks before production completion
