Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GYXTS-12B1.3
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiable
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
Item No.: |
GYXTS-12B1.3 |
Armored Type: |
Steel Tape |
Strength Member: |
Steel Wire Surround |
Jacket Material: |
PE |
Application: |
Pipeline |
Warranty Period: |
25 Years |
Item No.: |
GYXTS-12B1.3 |
Armored Type: |
Steel Tape |
Strength Member: |
Steel Wire Surround |
Jacket Material: |
PE |
Application: |
Pipeline |
Warranty Period: |
25 Years |
Attribute | Value |
---|---|
Item No. | GYXTS-12B1.3 |
Armored Type | Steel Tape |
Strength Member | Steel wire surround |
Jacket Material | PE |
Application | Pipeline |
Warranty Period | 25 years |

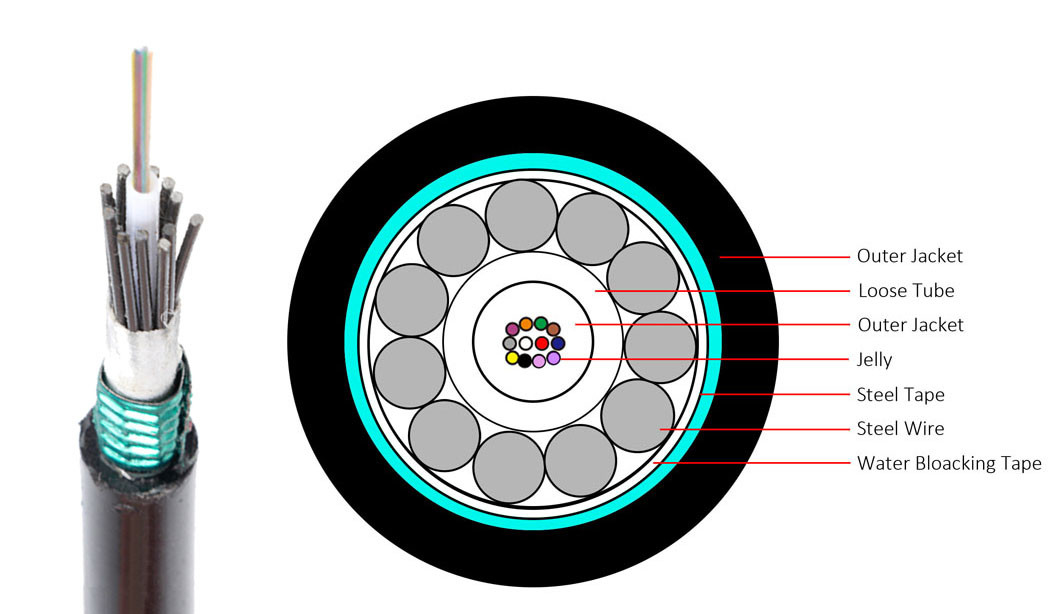

GYXTS Fiber Optical Cable features a loose tube design made of high modulus polyester material, filled with waterproof compound, and containing single-mode or multi-mode optical fibers. The external loose tube is protected by a steel wire armor layer with water blocking material and wrapping layer for enhanced compactness and longitudinal water resistance.
Fiber Count | Nominal Diameter (mm) | Nominal Weight (kg/km) | Max Fiber Per Tube | Tube Diameter (mm) | Allowable Tensile Load Long/Short (N) | Allowable Crush Resistance Long/Short (N/10cm) |
---|---|---|---|---|---|---|
2-6 | 6.8 | 60 | 2-6 | 2.5 | 1000/600 | 600/300 |
8-12 | 7.3 | 70 | 8-12 | 3.0 | 1000/600 | 600/300 |
14-24 | 7.8 | 83 | 14-23 | 3.6 | 1000/600 | 600/300 |
> 24 | Available upon customer's request |
