Name: GYTA33 Steel Armored Anti Rodent Fiber Optic Cable 72-144C G652D
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTS-12B1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTS-12B1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                    Outdoor Fiber Optic Cable, 72 Core Fiber Optic Cable, GYTA33 Fiber Optic Cable


Item No.:	GYXTS-12B1.3	Armored Type:	Steel Tape
Strength Member:	Steel Wire Surround	Jacket Material:	PE
Application:	Pipeline	Warranty Period:	25 Years

Item No.:	GYXTS-12B1.3
Armored Type:	Steel Tape
Strength Member:	Steel Wire Surround
Jacket Material:	PE
Application:	Pipeline
Warranty Period:	25 Years

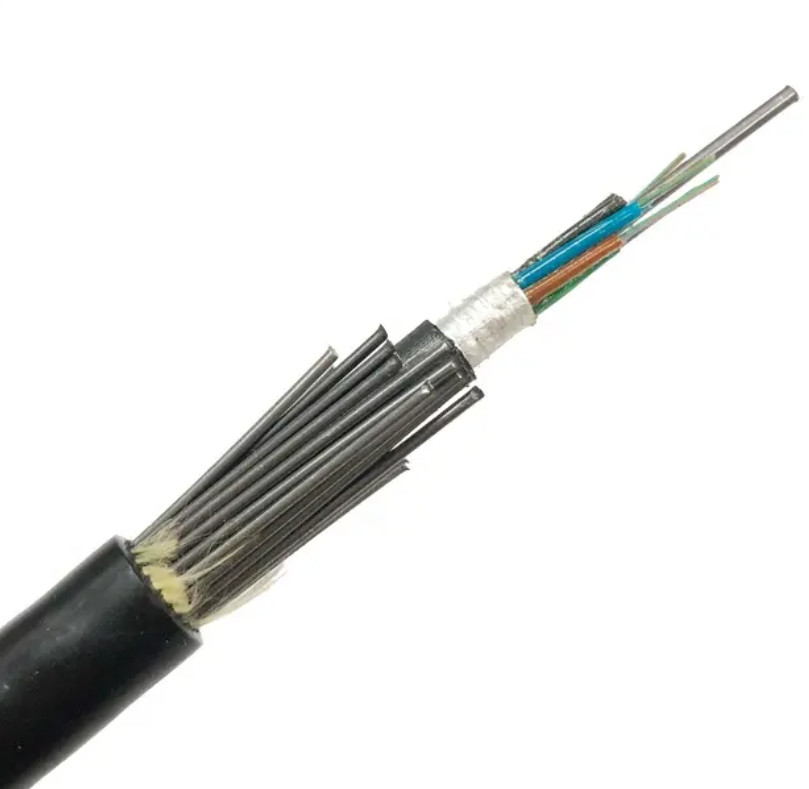

GYTA33 Steel Armored Anti Rodent Fiber Optic Cable 72-144C G652D

Anti Rodent GYTA33 Stranded Loose Tube Fiber Optic Cable

72 Core | 96 Core | 144C Outdoor Fiber Cable | G652D SM Underwater Fiber Cable

Product Specifications

Attribute	Value
Item No.	GYXTS-12B1.3
Armored Type	Steel Tape
Strength Member	Steel Wire Surround
Jacket Material	PE
Application	Pipeline
Warranty Period	25 years

Product Description

Low cost GYTA33 Stranded Loose Tube fiber optic cable with excellent mechanical and environmental properties.

Low transmission attenuation and dispersion
Precise control of fiber excess length for optimal performance
SZ-stranded loose tube design protects fibers
Water blocking gel filled core for moisture resistance
Steel wire armor provides superior tensile strength and crush resistance

Key Features

Central Loose Tube Design: Compact structure enhances transmission performance
Steel Wire Armoring: High-strength protection against mechanical damage
Rodent Protection: Armored layer prevents rodent attacks
PE Outer Sheath: Superior resistance to moisture and UV rays
A-Grade Fiber: Low attenuation for stable, long-distance transmission
Customizable Options: Available in configurations from 2 to 24 fibers

Technical Specifications

Fiber Count	Nominal Diameter (mm)	Nominal Weight (kg/km)	Max Fiber Per Tube	Tube Diameter (mm)	Allowable Tensile Load Long/Short (N)	Allowable Crush Resistance Long/Short (N/10cm)
2-6	6.8	60	2-6	2.5	1000/600	600/300
8-12	7.3	70	8-12	3.0	1000/600	600/300
14-24	7.8	83	14-23	3.6	1000/600	600/300
> 24	Available upon customer's request

Applications

Telecommunications Networks: Backbone networks, MAN, and access networks
Industrial Cabling: Factories, mines, and harsh environments
Railway and Highway Communication Systems: Long-distance reliability
Underground Duct Installations: Resistant to rodent damage and pressure

Why Choose Our Optical Cable?

Manufacturing Excellence: Factory-direct quality assurance
A-Grade Fiber: Superior performance with low signal attenuation
PE Sheath: Robust environmental protection and durability
Custom Solutions: Flexible customization for specific needs
Global Service: Reliable partner for fiber optic solutions worldwide

Production Supplier Profile

How to Place an OEM or Customized Order

Send your purchase intention to our email: cotton@fibercablepuls.com
Our sales team will contact you to confirm product specifications and requirements
Sign the contract or Proforma Invoice
After receiving your deposit, we will arrange production
2 weeks before production completion, we will notify you to arrange shipping
