Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: ASU-120
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Fiber Count:
|
12
|
Warranty Period:
|
25 Years
|
Jacket Color:
|
Black
|
Outer Sheath Material:
|
HDPE
|
Application:
|
Outdoor Overheard
|
Temperature Range:
|
-40°C To +70°C
|
Fiber Type:
|
Single-mode
|
Inner Sheath Material:
|
PE
|
Installation Method:
|
Aerial
|
Strength Member Material:
|
FRP
|
Cable Diameter:
|
7mm/8mm
|
Span:
|
80m-120m
|
|
Fiber Count:
|
12
|
|
Warranty Period:
|
25 Years
|
|
Jacket Color:
|
Black
|
|
Outer Sheath Material:
|
HDPE
|
|
Application:
|
Outdoor Overheard
|
|
Temperature Range:
|
-40°C To +70°C
|
|
Fiber Type:
|
Single-mode
|
|
Inner Sheath Material:
|
PE
|
|
Installation Method:
|
Aerial
|
|
Strength Member Material:
|
FRP
|
|
Cable Diameter:
|
7mm/8mm
|
|
Span:
|
80m-120m
|
| Attribute | Value |
|---|---|
| Fiber Count | 12 |
| Warranty Period | 25 years |
| Jacket Color | Black |
| Outer Sheath Material | HDPE |
| Application | Outdoor overhead |
| Temperature Range | -40°C to +70°C |
| Fiber Type | Single-mode |
| Inner Sheath Material | PE |
| Installation Method | Aerial |
| Strength Member Material | FRP |
| Cable Diameter | 7mm/8mm |
| Span | 80m-120m |

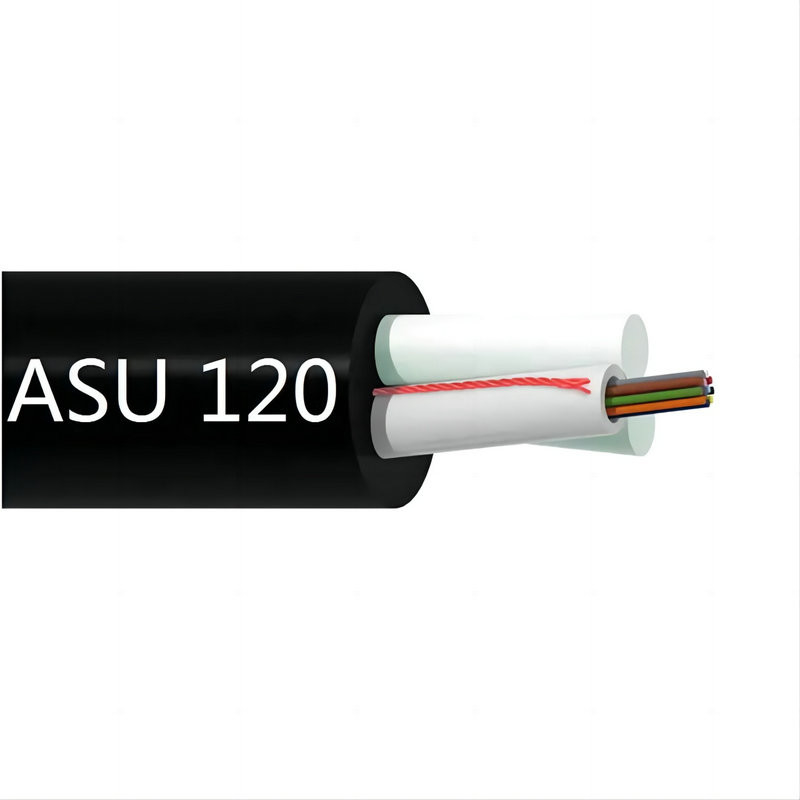

The 2~12 Fibers ASU Cable (AS80 and AS120) is a Self-Supported Optical Cable designed for connections between devices in both urban and rural networks, suitable for spans of 80m or 120m.
| Item | Parameters |
|---|---|
| Fiber Count | 12 |
| Filler | Rip cord |
| Span | 100m |
| Colored coated fiber | Dimension: 250µm±15µm Color: Blue, Yellow, Green, Red, Violet, White, Blown, Pink, Black, Gray, Orange, Aqua |
| Loose tube | Diameter: 1.7mm±0.1mm Material: PBT Color: blue |
| Filling compound in loose tube | Gel |
| Strength Member | FRP: 2.0mm |
| Armoured | Non-armoured |
| Outer sheath | Material: PE Cable diameter: 8.0mm |
| No. | Items | Unit | Specification |
|---|---|---|---|
| 1 | Mode Field Diameter | 1310nm μm | 9.2±0.4 |
| 1550nm μm | 10.4±0.8 | ||
| 2 | Cladding Diameter | μm | 125.0±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation(max.) | 1310nm dB/km | ≤0.35 |
| 1550nm dB/km | ≤0.21 | ||
| 1380nm dB/km | ≤0.35 | ||
| 1625nm dB/km | ≤0.24 | ||
| 10 | Attenuation and wavelength | 1310nm 1285-1330nm dB/km | ≤0.04 |
| 1550nm 1525-1575nm dB/km | ≤0.03 | ||
| 1550nm 1480-1580nm dB/km | ≤0.05 | ||
| 11 | Dispersion | 1288-1339nm ps/(nm.km) | ≥-3.5, ≤3.5 |
| 1271-1360nm ps/(nm.km) | ≥-5.3, ≤5.3 | ||
| 1480-1580nm ps/(nm.km) | ≤20 | ||
| 1550nm ps/(nm.km) | ≤18 | ||
| 12 | Zero dispersion wavelength | Nm | 1300-1324 |
| 13 | Zero dispersion slope | ps/(nm2•km) | ≤0.092 |
| 14 | Typical value | ps/(nm2•km) | 0.04 |
| 15 | Largest individual fiber | Ps/√ km | 0.2 |
| 16 | Link design values | Ps/√ km | 0.1 |
| 17 | Two way average | 1310nm-1550 | ≤0.01dB |
COMPANY Fiber cable name N*cores G.652D 2024 XXXXm
Custom cable marking available according to client requirements.
