Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: PUNAISGD/CABLEPULS
Certification: ISO/CE/ROSH
Model Number: ASU-6B1.3-120m
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiable
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Model:
|
ASU-6b1.3- 120m
|
Fiber Count:
|
6/12
|
Installation Method:
|
Aerial
|
Strength Member Material:
|
FRP*2*1mm
|
Cable Diameter:
|
7mm/8mm
|
Color:
|
Black
|
Length:
|
2km-5km
|
Installation:
|
Self- Supporting Aerial
|
|
Model:
|
ASU-6b1.3- 120m
|
|
Fiber Count:
|
6/12
|
|
Installation Method:
|
Aerial
|
|
Strength Member Material:
|
FRP*2*1mm
|
|
Cable Diameter:
|
7mm/8mm
|
|
Color:
|
Black
|
|
Length:
|
2km-5km
|
|
Installation:
|
Self- Supporting Aerial
|
| Attribute | Value |
|---|---|
| Model | ASU-6b1.3- 120m |
| Fiber Count | 6/12 |
| Installation Method | Aerial |
| Strength Member Material | FRP*2*1mm |
| Cable Diameter | 7mm/8mm |
| Color | Black |
| Length | 2km-5km |
| Installation | Self-supporting Aerial |

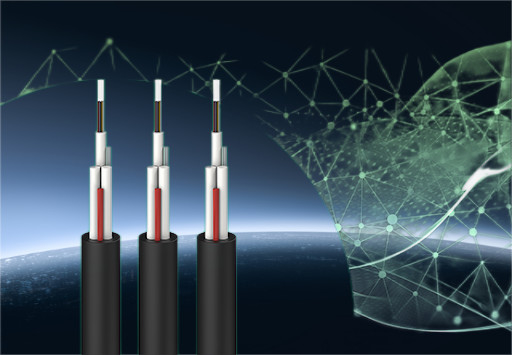

The ASU Aerial Self-Supported Mini ADSS Fiber Optic Cable is designed for versatile applications in outside plant distribution and local network loop architectures. Its robust construction makes it ideal for transitions between aerial networks and ducted or buried installations.
| Parameter | 12 Fiber | 24 Fiber |
|---|---|---|
| Fiber Model | G.652D | |
| Loose Tube Material | PBT | |
| Loose Tube Diameter | 2.5±0.1mm | 2.8±0.1mm |
| Strength Member Material | FRP | |
| Cable Diameter | 8.0±0.2 mm | 8.5±0.2 mm |
| Allowable Tensile Strength | 1000N | 1500N |
| Min. Bending Radius (No Tension) | 10×Cable Diameter | |
| Operating Temperature Range | -40°C to +70°C | |
| Parameter | Unit | Specification |
|---|---|---|
| Mode Field Diameter (1310nm) | μm | 9.2±0.4 |
| Attenuation (1550nm) | dB/km | ≤0.21 |
| Zero Dispersion Wavelength | nm | 1300-1324 |
| Dispersion (1550nm) | ps/(nm.km) | ≤18 |
