Mini ADSS ASU Cable Aerial Self Supported Fiber Optic Cable G.652D

Name: Mini ADSS ASU Cable Aerial Self Supported Fiber Optic Cable G.652D
Brand: guangzhou fiber cablepuls co ltd
SKU: ASU-120
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ASU-120

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

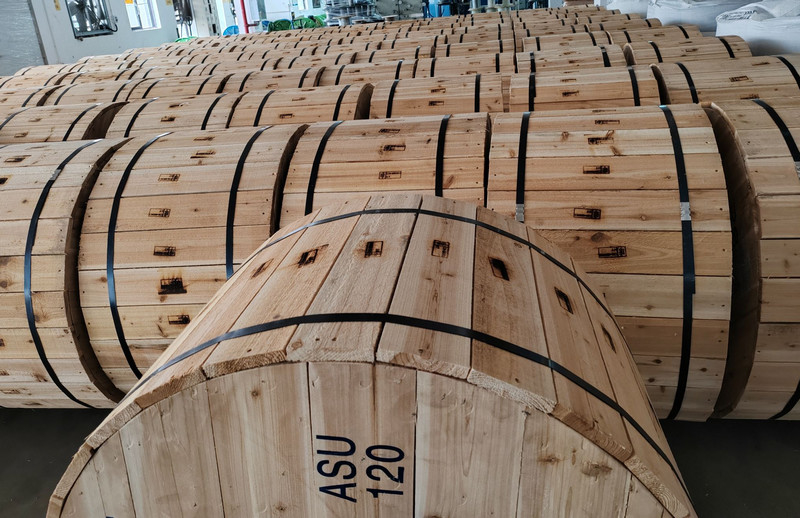

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                ADSS ASU Cable, Aerial ASU Cable, G652D Fiber Optic Cable


Fiber Count:	12	Installation Method:	Aerial
Strength Member Material:	FRP*2	Cable Diameter:	7mm/8mm
Span:	80m-120m	Application:	Telecommunication,Aerial,Telecom,Network
Color:	Black	Operating Temperature:	-40~+75
Length:	2km-5km	Model:	ASU CABLE
Installation:	Self- Supporting Aerial

Fiber Count:	12
Installation Method:	Aerial
Strength Member Material:	FRP*2
Cable Diameter:	7mm/8mm
Span:	80m-120m
Application:	Telecommunication,Aerial,Telecom,Network
Color:	Black
Operating Temperature:	-40~+75
Length:	2km-5km
Model:	ASU CABLE
Installation:	Self- Supporting Aerial

Mini ADSS ASU Cable Aerial Self Supported Fiber Optic Cable G.652D

Asu MINI ADSS-ASU – Aerial Self-Supported ASU Fiber Optic Cable, G.652D

G.652D Aerial Self-Supported ASU Fiber Optic Cable has a loose tube structure and

water-resistant gel compound to provide crucial protection for the fiber.

Over the tube, water-blocking material is applied to keep the cable watertight.

Two parallel fiber-reinforced plastic (FRP) elements are placed on the two sides.

The cable is covered with a single PE outer sheath.

It is especially suitable for installation in aerial for long-distance communication.

Loose tube
Singlemode
1-12, 24 Fiber count available
Proven all-dielectric loose tube construction
Immune to electromagnetic fields
Fast, one-step installation
Integrated FRP strength elements
Round cable profiles minimize wind and ice loading

Mini ADSS ASU Cable Aerial Self Supported Fiber Optic Cable G.652D 0

The Technical Data of ASU Fiber Optic Cable

No. of cable		12	24
Fiber Model		G.652D
Loose Tube	Material	PBT
	Diameter	2.5±0.1mm	2.8±0.1mm
	Thickness	0.32±0.05 mm
	Color	Nature
Strength Member	Material	FRP
	Diatmeter	2.5±0.05 mm	2.5±0.1mm
Outer Sheath	Material	PE
	Color	Black
Cable Diameter		8.0±0.2 mm	8.5±0.2 mm
Cable Weight		55±5.0 kg/km	65±5.0 kg/km
Allowable Tensile Strength		1000N	1500N
Allowable Crush Resistance		1100N/100mm	2200N/100mm
Min. bending radius	Without Tension	10.0×Cable-φ
	Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)	Installation	-20~+60
	Transport&Storage	-40~+70
	Operation	-40~+70

Fiber Parameters
No.	Items			Unit	Specification
					G.652D
1	Mode Field Diameter		1310nm	μm	9.2±0.4
			1550nm	μm	10.4±0.8
2	Cladding Diameter			μm	125.0±1.0
3	Cladding Non-Circularity			%	≤1.0
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)	1310nm		dB/km	≤0.35
		1550nm		dB/km	≤0.21
		1380nm		dB/km	≤0.35
		1625nm		dB/km	≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm		dB/km	≤0.04
		1550nm 1525-1575nm		dB/km	≤0.03
		1550nm 1480-1580nm		dB/km	≤0.05
11	Dispersion	1288-1339nm		ps/(nm.km)	≥-3.5, ≤3.5
		1271-1360nm		ps/(nm.km)	≥-5.3, ≤5.3
		1480-1580nm		ps/(nm.km)	≤20
		1550nm		ps/(nm.km)	≤18
12	Zero dispersion wavelength			Nm	1300-1324
13	Zero dispersion slope			ps/(nm2•km)	≤0.092
14	Typical value			ps/(nm2•km)	0.04
15	Largest individual fiber			Ps/√ km	0.2
16	Link design values			Ps/√ km	0.1
17	Two way average			1310nm-1550	≤0.01dB

Mini ADSS ASU Cable Aerial Self Supported Fiber Optic Cable G.652D 1

Production Supplier Profile

How do I place an OEM or customized order?
1) Send your purchase intention to our email: cotton@fibercablepuls.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity,

and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.

5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
