ASU Optic Fiber Cable 6 Hilos G652d Span 80 120m Communications

Name: ASU Optic Fiber Cable 6 Hilos G652d Span 80 120m Communications
Brand: guangzhou fiber cablepuls co ltd
SKU: ASU-6B1.3-80m
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ASU-6B1.3-80m

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                ASU Optic Fiber Cable, 6 Hilos Optic Fiber Cable, Optic Fiber Cable G652d


Model:	ASU-6b1.3- 80m	Fiber Count:	6
Installation Method:	Overhead	Strength Member Material:	FRP20.7mm
Cable Diameter:	7mm	Length:	100km Aviable
Installation:	Self- Supporting Aerial

Model:	ASU-6b1.3- 80m
Fiber Count:	6
Installation Method:	Overhead
Strength Member Material:	FRP20.7mm
Cable Diameter:	7mm
Length:	100km Aviable
Installation:	Self- Supporting Aerial

ASU Optic Fiber Cable 6 Hilos G652d Span 80 120m Communications

ASU Cable 6 Hilos G652d Span 80 120m Communications Optic Fiber Cable

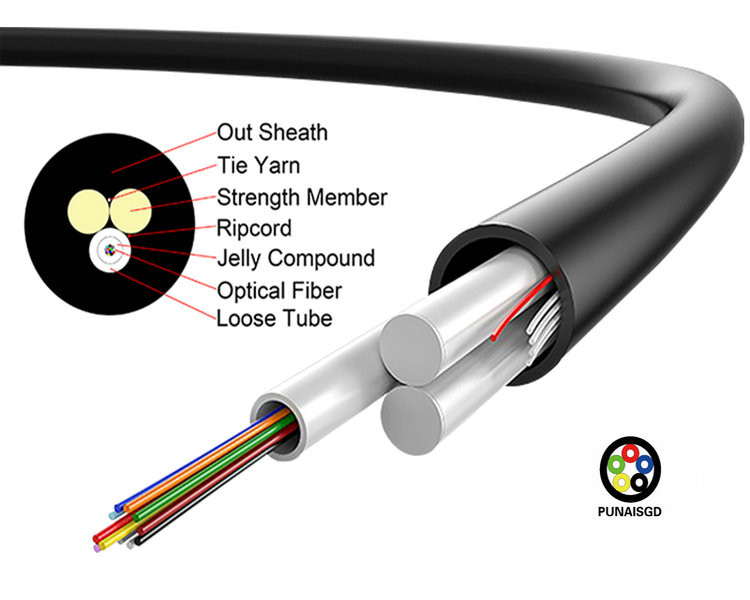

ASU 0ptical fibers are housed in loose tubes that are made of high-modulus plastic and

filled with waterproof compounds.The
fibers,250um, are positioned in a central tube made of a high modules plastic.

The tubes are filled with a water-resistant filling
compound. Two paralled FRP and outer sheath as a non-metallic

strength member.1-12 cores colored fiber. Non-metallic
self-supporting member. Good-performance sheath materials.
Two FRPs are applied as strength member.
Loose tube is putted in the cable and protected by two FRPs.
Polyethylene sheath are applied as outer sheath.

ASU Optic Fiber Cable 6 Hilos G652d Span 80 120m Communications 0

The Technical Data of ASU Fiber Optic Cable

No. of cable		12	24
Fiber Model		G.652D
Loose Tube	Material	PBT
	Diameter	2.5±0.1mm	2.8±0.1mm
	Thickness	0.32±0.05 mm
	Color	Nature
Strength Member	Material	FRP
	Diatmeter	2.5±0.05 mm	2.5±0.1mm
Outer Sheath	Material	PE
	Color	Black
Cable Diameter		8.0±0.2 mm	8.5±0.2 mm
Cable Weight		55±5.0 kg/km	65±5.0 kg/km
Allowable Tensile Strength		1000N	1500N
Allowable Crush Resistance		1100N/100mm	2200N/100mm
Min. bending radius	Without Tension	10.0×Cable-φ
	Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)	Installation	-20~+60
	Transport&Storage	-40~+70
	Operation	-40~+70

Fiber Parameters
No.	Items			Unit	Specification
					G.652D
1	Mode Field Diameter		1310nm	μm	9.2±0.4
			1550nm	μm	10.4±0.8
2	Cladding Diameter			μm	125.0±1.0
3	Cladding Non-Circularity			%	≤1.0
4	Core-Cladding Concentricity Error			μm	≤0.5
5	Coating Diameter			μm	245±5
6	Coating Non-Circularity			%	≤6.0
7	Cladding-Coating Concentricity Error			μm	≤12.0
8	Cable Cutoff Wavelength			nm	λcc≤1260
9	Attenuation(max.)	1310nm		dB/km	≤0.35
		1550nm		dB/km	≤0.21
		1380nm		dB/km	≤0.35
		1625nm		dB/km	≤0.24
10	Attenuation and wavelength	1310nm 1285-1330nm		dB/km	≤0.04
		1550nm 1525-1575nm		dB/km	≤0.03
		1550nm 1480-1580nm		dB/km	≤0.05
11	Dispersion	1288-1339nm		ps/(nm.km)	≥-3.5, ≤3.5
		1271-1360nm		ps/(nm.km)	≥-5.3, ≤5.3
		1480-1580nm		ps/(nm.km)	≤20
		1550nm		ps/(nm.km)	≤18
12	Zero dispersion wavelength			Nm	1300-1324
13	Zero dispersion slope			ps/(nm2•km)	≤0.092
14	Typical value			ps/(nm2•km)	0.04
15	Largest individual fiber			Ps/√ km	0.2
16	Link design values			Ps/√ km	0.1
17	Two way average			1310nm-1550	≤0.01dB

ASU Optic Fiber Cable 6 Hilos G652d Span 80 120m Communications 1

Production Supplier Profile

How do I place an OEM or customized order?
1) Send your purchase intention to our email: cotton@fibercablepuls.com
2) Our sales team will contact you to confirm the product specification, packaging, printing, quantity,

and other specific information.
3) Sign the contract or Proforma Invoice.
4) After receiving your deposit, we will start to arrange the production.

5) 2 weeks before the completion of production, we will notify you to start contacting shipping.
