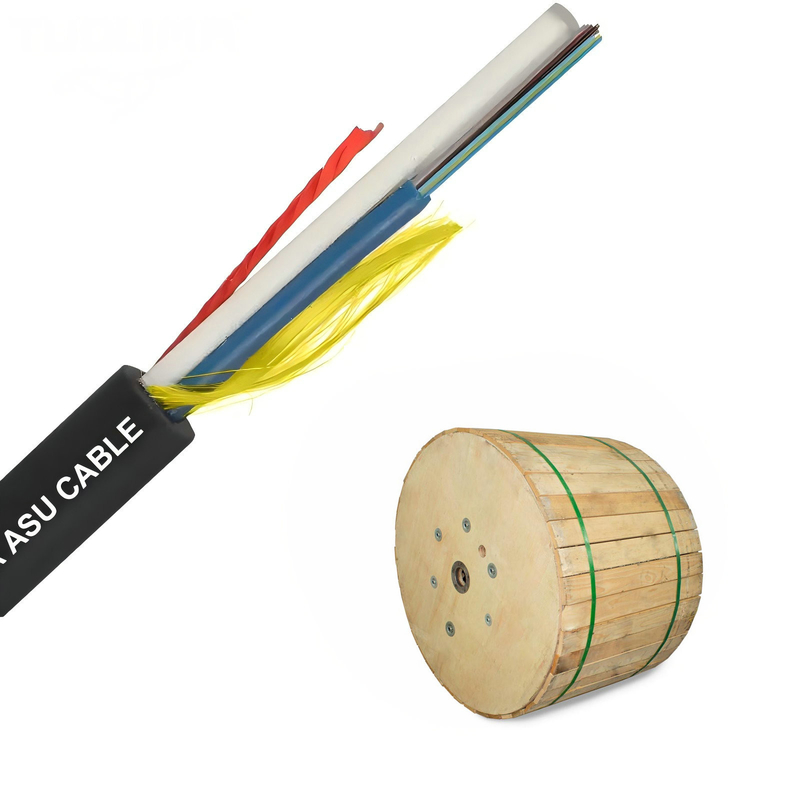

Fiber Optic ASU Cable 6/12/24 HILOS 4KM Length 120M SPAN

Name: Fiber Optic ASU Cable 6/12/24 HILOS 4KM Length 120M SPAN
Brand: guangzhou fiber cablepuls co ltd
SKU: ASU-6cores-120
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ASU-6cores-120

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                Fiber Optic ASU Cable, 4KM ASU Cable, 24 HILOS ASU Cable


Fiber Count:	6	Installation Method:	Aerial
Strength Member Material:	FRP*2	Cable Diameter:	7mm/8mm
Span:	80m-120m	Length:	2km-5km
Model:	ASU CABLE

Fiber Count:	6
Installation Method:	Aerial
Strength Member Material:	FRP*2
Cable Diameter:	7mm/8mm
Span:	80m-120m
Length:	2km-5km
Model:	ASU CABLE

Fiber Optic ASU Cable 6/12/24 HILOS 4KM Length 120M SPAN

Cable ASU 6/12/24 HILOS CARRATE DE 4KM SPAN 120M FIBER OPTI CABLES

The 2~12 Fibers ASU Cable(AS80 and AS120) is a Self-Supported Optical Cable,

It was developed to provide the connection between
devices, being indicated for installation in urban and rural networks, in spans of 80m or 120m.

Because it is self-supported and
totally dielectric, it has FRP strength member as a traction element,

thus avoiding electrical discharges in the networks. It is
easy to handle and install, eliminating the need to use strings or grounding.

Fiber Optic ASU Cable 6/12/24 HILOS 4KM Length 120M SPAN 1

The Technical Data of ASU Fiber Optic Cable

No. of cable		12	24
Fiber Model		G.652D
Loose Tube	Material	PBT
	Diameter	2.5±0.1mm	2.8±0.1mm
	Thickness	0.32±0.05 mm
	Color	Nature
Strength Member	Material	FRP
	Diatmeter	2.5±0.05 mm	2.5±0.1mm
Outer Sheath	Material	PE
	Color	Black
Cable Diameter		8.0±0.2 mm	8.5±0.2 mm
Cable Weight		55±5.0 kg/km	65±5.0 kg/km
Allowable Tensile Strength		1000N	1500N
Allowable Crush Resistance		1100N/100mm	2200N/100mm
Min. bending radius	Without Tension	10.0×Cable-φ
	Under Maximum Tension	20.0×Cable-φ
Temperature range (℃)	Installation	-20~+60
	Transport&Storage	-40~+70
	Operation	-40~+70

Fiber Optic ASU Cable 6/12/24 HILOS 4KM Length 120M SPAN 2
