guangzhou fiber cablepuls co ltd
cotton@fibercablepuls.com
+8613687956390
Product Details
Place of Origin: GUANGZHOU/CHINA
Brand Name: CABLEPULS
Certification: ISO/CE/ROSH
Model Number: GJYXFCH-4b6
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Cable Model:
|
GJYXCH/GJYXFCH-4b6
|
Outer Sheath Color:
|
Black/white
|
Cable Length:
|
1km 2km
|
Feature:
|
Flame Retardant Characteristics
|
Jacket:
|
LSZH
|
Installation Style:
|
Indoor & Outdoor Self-Support Drop Cable
|
Messenger Wire:
|
Steel
|
|
Cable Model:
|
GJYXCH/GJYXFCH-4b6
|
|
Outer Sheath Color:
|
Black/white
|
|
Cable Length:
|
1km 2km
|
|
Feature:
|
Flame Retardant Characteristics
|
|
Jacket:
|
LSZH
|
|
Installation Style:
|
Indoor & Outdoor Self-Support Drop Cable
|
|
Messenger Wire:
|
Steel
|
| Attribute | Value |
|---|---|
| Cable Model | GJYXCH/GJYXFCH-4b6 |
| Outer Sheath Color | Black/white |
| Cable Length | 1km 2km |
| Feature | Flame retardant characteristics |
| Jacket | LSZH |
| Installation Style | Indoor & Outdoor Self-Support Drop Cable |
| Messenger Wire | Steel |

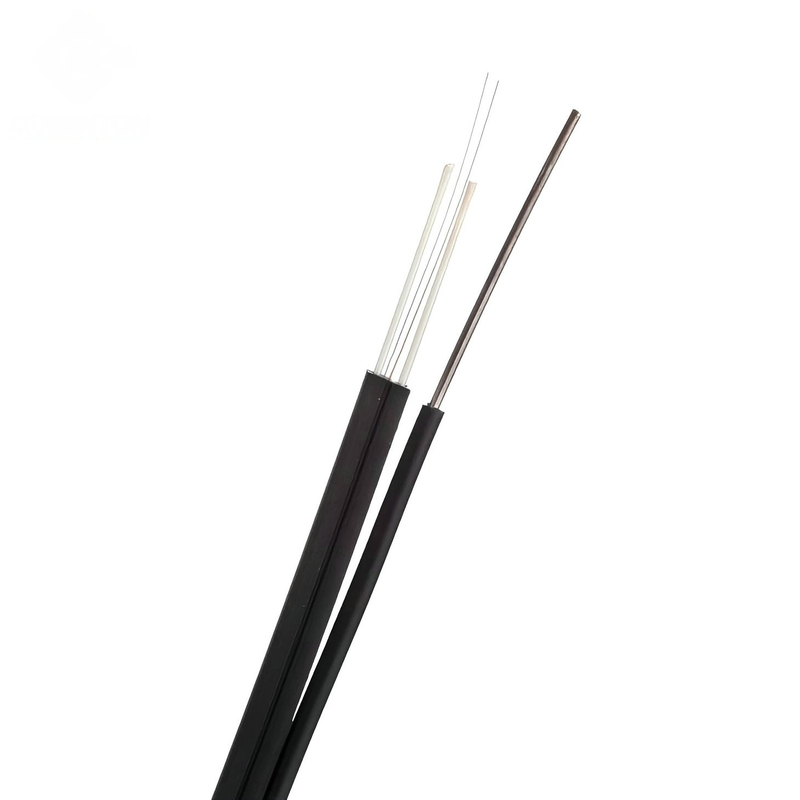

The FTTH DROP CABLE Outdoor Self-Supportive Figure-8 Drop Cable GJYXFCH is a versatile household optical cable, commonly known as figure 8 cable. Designed for both indoor and outdoor terminal installations, it features excellent flexibility for bending during wiring. The cable can be cut to site-specific distances and installed with quick-connect joints or fiber cold splices, eliminating the need for fiber fusion and significantly improving construction efficiency.
| Parameter | Specification |
|---|---|
| Attenuation @ 1310 nm | ≤ 0.36 dB/km |
| Attenuation @ 1550 nm | ≤ 0.22 dB/km |
| Chromatic Dispersion @ 1550 nm | ≤ 18 ps/nm.km |
| Zero Dispersion Wavelength | 1300 - 1324 nm |
| Characteristic | Specification |
|---|---|
| Outer Diameter | 2.0 x 5.0 mm ± 0.2 mm |
| Net Weight | 20 kg/km ± 2 kg/km |
| Max. Tensile Loading (Short Term) | 600 N |
| Max. Tensile Loading (Long Term) | 300 N |
| Crush Resistance (Short Term) | 1000 N |
| Crush Resistance (Long Term) | 2200 N |
| Operating Temperature Range | -20°C to +60°C |
Reel Length: 2 km per reel, packaged in a single carton box.
Sheath Marking: Brand, Cable type, Fiber type and counts, Year of manufacture, and Length marking as per requirement, at 1 m intervals.
| Container Type | 1KM/roll | 2KM/roll |
|---|---|---|
| 20'GP container | 812KM | 1000KM |
| 40'HQ container | 1900KM | 2000KM |
| Parameter | Value |
|---|---|
| Fiber count | 1/2/4 |
| Tight buffer | LSZH, White |
| Tight buffer diameter | 0.90±0.05mm |
| Fiber Type | G657A1/A2 |
| Strength member | Glass yarn/aramid yarn |
| Outer sheath | LSZH Lower smoke zero halogen frame retardant & UV Anti |
| Cable Diameter dimensions | 3.0±0.2mm |
| Operation temperature range | -40 ℃ to + 70 ℃ |
| Installation temperature range | -5～+50℃ |
| Transport and storage temperature range | -40 ℃ to + 70 ℃ |
| No. | Items | Unit | Specification |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm) | μm | 9.2±0.4 |
| 2 | Cladding Diameter | μm | 125.0±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
