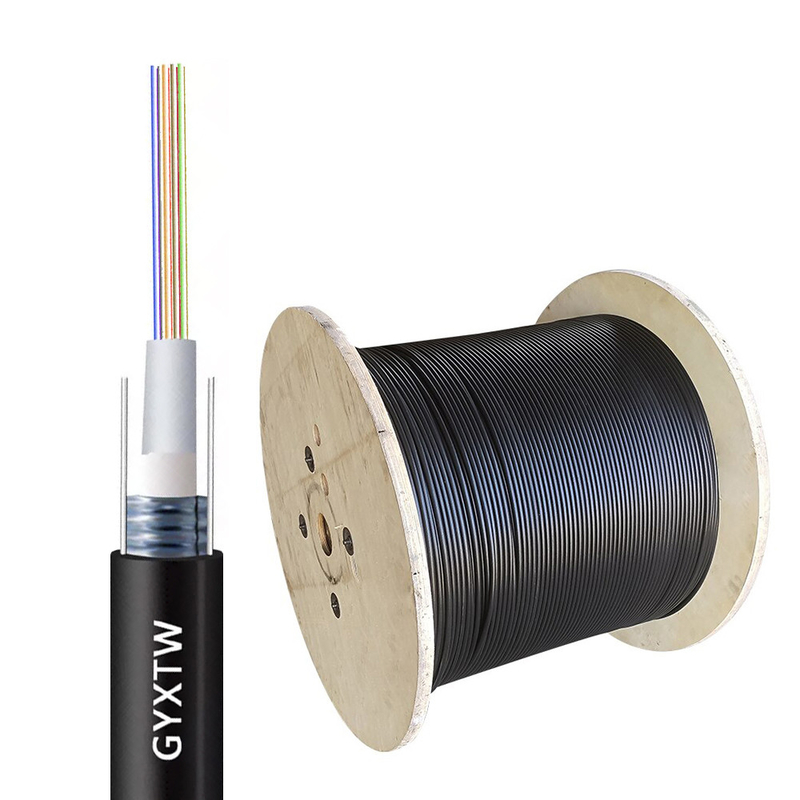

Name: GYXTW Armored Fiber Optic Cable 2-24 Fibers Aerial Outdoor
Brand: guangzhou fiber cablepuls co ltd
SKU: GYXTW
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: GYXTW

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                                                                                                                                                                                                                            Armored Fiber Optic Cable, Armored Outdoor Fiber Cable, Overhead Armored Fiber Cable


Fiber Count:	2-24 Fibers	Warranty Period:	25 Years
Jacket Color:	Black	Application:	Outdoor Overheard
Installation Method:	Aerial	Cable Diameter:	7mm/8mm
Bending Radius:	Static: 10 Times Cable Diameter, Dynamic: 20 Times Cable Diameter	Jacket Material:	PE/LSZH
Fiber Type:	G.652D	Crush Resistance:	Long Term: 300N/100mm, Short Term: 1000N/100mm
Tensile Strength:	Long Term: 600N, Short Term: 1500N	Storage Temperature:	-40℃ To +70℃
Armor Material:	Steel Tape/Steel Wire

Fiber Count:	2-24 Fibers
Warranty Period:	25 Years
Jacket Color:	Black
Application:	Outdoor Overheard
Installation Method:	Aerial
Cable Diameter:	7mm/8mm
Bending Radius:	Static: 10 Times Cable Diameter, Dynamic: 20 Times Cable Diameter
Jacket Material:	PE/LSZH
Fiber Type:	G.652D
Crush Resistance:	Long Term: 300N/100mm, Short Term: 1000N/100mm
Tensile Strength:	Long Term: 600N, Short Term: 1500N
Storage Temperature:	-40℃ To +70℃
Armor Material:	Steel Tape/Steel Wire

GYXTW Armored Fiber Optic Cable 2-24 Fibers Aerial Outdoor

Small Diameter And Light Weight GYXTW Armored Fiber Optic Cable For Aerial Installation

Product Specifications

Attribute	Value
Fiber Count	2-24 fibers
Warranty Period	25 years
Jacket Color	Black
Application	Outdoor overhead
Installation Method	Aerial
Cable Diameter	7mm/8mm
Bending Radius	Static: 10 times cable diameter, Dynamic: 20 times cable diameter
Jacket Material	PE/LSZH
Fiber Type	G.652D
Crush Resistance	Long Term: 300N/100mm, Short Term: 1000N/100mm
Tensile Strength	Long Term: 600N, Short Term: 1500N
Storage Temperature	-40℃ to +70℃
Armor Material	Steel Tape/Steel Wire

Product Overview

The GYXTW fiber cable is an optimal solution for aerial, duct, direct buried, and pipe laying applications. Its key features include:

Parallel metallic elements for enhanced tensile strength
Compact, small diameter design with lightweight construction
Corrugated steel armor for crush resistance and rodent protection
Internal protection and filling elements to prevent water ingress
Flexible and easy to install in field conditions

Technical Specifications

Cable Data

Fiber count	Structure	Fibers per tube	Loose tube diameter (mm)	CSM diameter/pad diameter (mm)	Nominal Thickness of outer jacket (mm)	Cable diameter/ Height (mm)	Cable weight (kg/km)
2	1	2	1.7±0.1	1.0/1.0	1.6	8.0±0.2	57
4	1	4	1.85±0.1	1.0/1.0	1.6	8.0±0.2	58
6	1	6	1.9±0.1	1.0/1.0	1.6	8.0±0.2	58
8	1	8	2.0±0.1	1.0/1.0	1.6	8.0±0.2	60
12	1	12	2.2±0.1	1.0/1.0	1.6	8.0±0.2	60

Fiber Parameters (G.652D)

No.	Items	Unit	Specification
1	Mode Field Diameter (1310nm)	μm	9.2±0.4
	Mode Field Diameter (1550nm)	μm	10.4±0.8
2	Cladding Diameter	μm	125.0±1.0
3	Cladding Non-Circularity	%	≤1.0
4	Core-Cladding Concentricity Error	μm	≤0.5
5	Coating Diameter	μm	245±5
6	Coating Non-Circularity	%	≤6.0
7	Cladding-Coating Concentricity Error	μm	≤12.0
8	Cable Cutoff Wavelength	nm	λcc≤1260
9	Attenuation(max.) (1310nm)	dB/km	≤0.35
	Attenuation(max.) (1550nm)	dB/km	≤0.21
	Attenuation(max.) (1380nm)	dB/km	≤0.35
	Attenuation(max.) (1625nm)	dB/km	≤0.24
10	Attenuation and wavelength (1310nm 1285-1330nm)	dB/km	≤0.04
	Attenuation and wavelength (1550nm 1525-1575nm)	dB/km	≤0.03
	Attenuation and wavelength (1550nm 1480-1580nm)	dB/km	≤0.05
11	Dispersion (1288-1339nm)	ps/(nm.km)	≥-3.5, ≤3.5
	Dispersion (1271-1360nm)	ps/(nm.km)	≥-5.3, ≤5.3
	Dispersion (1480-1580nm)	ps/(nm.km)	≤20
	Dispersion (1550nm)	ps/(nm.km)	≤18
12	Zero dispersion wavelength	Nm	1300-1324
13	Zero dispersion slope	ps/(nm2•km)	≤0.092
14	Typical value	ps/(nm2•km)	0.04
15	Largest individual fiber	Ps/√ km	0.2
16	Link design values	Ps/√ km	0.1
17	Two way average (1310nm-1550)	dB	≤0.01

Cable Marking & Fiber Colors

Standard marking format: COMPANY Fiber cable name N*cores G.652D 2024 XXXXm

Marking is printed every 1 meter
"G.652D" indicates ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber
Custom marking available according to client requirements

Ordering Information

OEM/Customized Order Process

Send purchase intention to: cotton@fibercablepuls.com
Our sales team will confirm product specifications, packaging, printing, and quantity
Sign contract or Proforma Invoice
Production begins after receiving deposit
Shipping arrangements notified 2 weeks before production completion
