ASU Aerial Fiber Optic Cable 2-12 Fibers Single Mode FRP Strength

Name: ASU Aerial Fiber Optic Cable 2-12 Fibers Single Mode FRP Strength
Brand: guangzhou fiber cablepuls co ltd
SKU: ASU-120m-8b1.3
Price: 190.00 USD
Availability: InStock

Product Details

Place of Origin: GUANGZHOU/CHINA

Brand Name: PUNAISGD/CABLEPULS

Certification: ISO/CE/ROSH

Model Number: ASU-120m-8b1.3

Document: Product Brochure PDF

Payment & Shipping Terms

Minimum Order Quantity: 2km

Price: negotiable

Packaging Details: Wooden Spool /drum

Delivery Time: 5-25days

Payment Terms: 30%TT as deposit,70%Balance before shipping.

Supply Ability: 100km

Get Best Price

Chat now

Product Details

Product Description

Highlight:
                                                                                                                                                            2 Fibers ASU Cable, Single Mode Aerial ASU Cable, 12 Fibers ASU Cable


Model:	ASU-120m-8b1.3	Fiber Count:	2/4/6/8/12 Fibers
Strength Member Material:	FRP21mm	Cable Diameter:	7mm/8mm
Installation:	Self- Supporting Aerial

Model:	ASU-120m-8b1.3
Fiber Count:	2/4/6/8/12 Fibers
Strength Member Material:	FRP21mm
Cable Diameter:	7mm/8mm
Installation:	Self- Supporting Aerial

ASU Aerial Fiber Optic Cable 2-12 Fibers Single Mode FRP Strength

ASU Cable Single Mode Aerial ASU Cable 2/4/6/8/10/12 Fibers ASU80 ASU120

Product Specifications

Model	ASU-120m-8b1.3
Fiber Count	2/4/6/8/12 fibers
Strength Member Material	FRP21mm
Cable Diameter	7mm/8mm
Installation	Self-supporting Aerial

Product Description

Factory ASU cable with 2/4/6/8/10/12 Single Mode Fibra Optica ASU80 ASU120

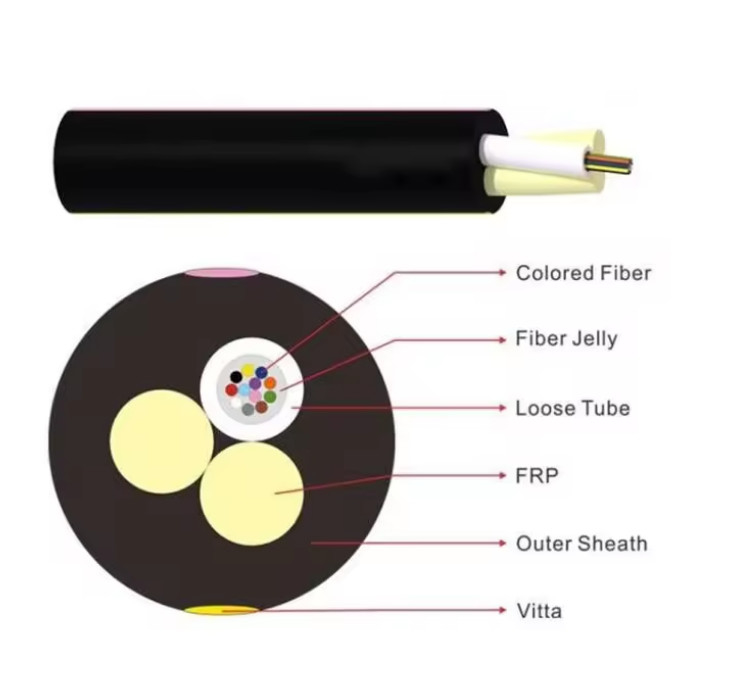

The optical fiber is placed in a loose tube with 1-24 cores capacity. Tube filling compound provides water blocking, while FRP elements ensure tensile strength. This economical, compact design replaces GYFTY in SZ stranded configuration, finished with HDPE or LSZH jacket.

1-12 cores colored fiber
Non-metallic self-supporting member
High-performance sheath materials
Compact structure
Onsite termination capability
All-dielectric structure resistant to electromagnetic interference
Easy stripping and splicing for simplified installation and maintenance

Key Features

Small size and light weight design with two FRP strength members for excellent tensile performance. Available in gel-filled or gel-free options with superior waterproofing. High fiber capacity at competitive pricing, suitable for short span aerial and duct installations.

Technical Specifications

Parameter	12 Fiber	24 Fiber
Fiber Model	G.652D
Loose Tube Material	PBT
Loose Tube Diameter	2.5±0.1mm	2.8±0.1mm
Strength Member Material	FRP
Cable Diameter	8.0±0.2 mm	8.5±0.2 mm
Cable Weight	55±5.0 kg/km	65±5.0 kg/km
Allowable Tensile Strength	1000N	1500N
Temperature Range (Operation)	-40°C to +70°C

Fiber Parameters

Parameter	Unit	Specification
Mode Field Diameter (1310nm)	μm	9.2±0.4
Cladding Diameter	μm	125.0±1.0
Attenuation (max. 1550nm)	dB/km	≤0.21
Zero Dispersion Wavelength	nm	1300-1324

Ordering Information

For OEM or customized orders:

Send purchase requirements to cotton@fibercablepuls.com
Our sales team will confirm specifications, packaging, and quantity
Sign contract or Proforma Invoice
Production begins after deposit receipt
Shipping coordination begins 2 weeks before production completion
