Model Number: GYXTW
Document: Product Brochure PDF
Payment & Shipping Terms
Minimum Order Quantity: 2km
Price: negotiate
Packaging Details: Wooden Spool /drum
Delivery Time: 5-25days
Payment Terms: 30%TT as deposit,70%Balance before shipping.
Supply Ability: 100km
|
Model No:
|
GYXTW
|
Use:
|
Aerial
|
Loose Tube Material:
|
PBT Or Jelly
|
Cable Diameter:
|
7mm8mm
|
Samples:
|
Free
|
Fiber Grade:
|
G652D/ G657A1
|
Waterblocking Material:
|
Water Blocking Tape Or Filling Compound
|
Steel Wire:
|
0.7*2mm
|
Cable Color:
|
Black
|
|
Model No:
|
GYXTW
|
|
Use:
|
Aerial
|
|
Loose Tube Material:
|
PBT Or Jelly
|
|
Cable Diameter:
|
7mm8mm
|
|
Samples:
|
Free
|
|
Fiber Grade:
|
G652D/ G657A1
|
|
Waterblocking Material:
|
Water Blocking Tape Or Filling Compound
|
|
Steel Wire:
|
0.7*2mm
|
|
Cable Color:
|
Black
|
| Attribute | Value |
|---|---|
| Model No | GYXTW |
| Use | Aerial |
| Loose Tube Material | PBT or Jelly |
| Cable Diameter | 7mm8mm |
| Samples | free |
| Fiber Grade | G652D/ G657A1 |
| Waterblocking Material | Water Blocking Tape Or Filling Compound |
| Steel Wire | 0.7*2mm |
| Cable Color | Black |

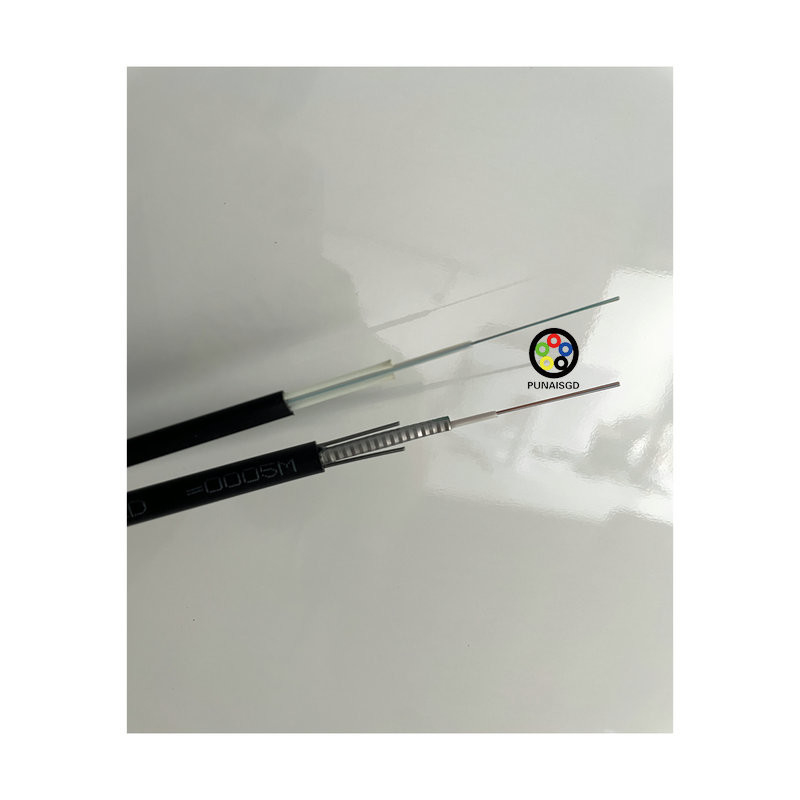

GYXTW central bundle tube cable is constructed by inserting a 250 μm fiber into a loose tube made of a high modulus material filled with a water-repellent compound. The loose tube is coated with a double-sided plastic coated steel strip (PSP) longitudinally, and a water-blocking material is added between the steel strip and the loose tube to ensure the compactness and longitudinal water resistance of the cable. Two parallel steel wires are placed on both sides to be extruded. The vinyl sheath is cabled.
| Fiber count | Structure | Fibers per tube | Loose tube diameter (mm) | CSM diameter/pad diameter (mm) | Nominal Thickness of outer jacket (mm) | Cable diameter/ Height (mm) | Cable weight (kg/km) |
|---|---|---|---|---|---|---|---|
| 2 | 1 | 2 | 1.7±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 57 |
| 4 | 1 | 4 | 1.85±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 6 | 1 | 6 | 1.9±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 58 |
| 8 | 1 | 8 | 2.0±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| 12 | 1 | 12 | 2.2±0.1 | 1.0/1.0 | 1.6 | 8.0±0.2 | 60 |
| No. | Items | Unit | Specification |
|---|---|---|---|
| 1 | Mode Field Diameter (1310nm) | μm | 9.2±0.4 |
| 1 | Mode Field Diameter (1550nm) | μm | 10.4±0.8 |
| 2 | Cladding Diameter | μm | 125.0±1.0 |
| 3 | Cladding Non-Circularity | % | ≤1.0 |
| 4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
| 5 | Coating Diameter | μm | 245±5 |
| 6 | Coating Non-Circularity | % | ≤6.0 |
| 7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
| 8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
| 9 | Attenuation(max.) (1310nm) | dB/km | ≤0.35 |
| 9 | Attenuation(max.) (1550nm) | dB/km | ≤0.21 |
| 9 | Attenuation(max.) (1380nm) | dB/km | ≤0.35 |
| 9 | Attenuation(max.) (1625nm) | dB/km | ≤0.24 |
| 10 | Attenuation and wavelength (1310nm 1285-1330nm) | dB/km | ≤0.04 |
| 10 | Attenuation and wavelength (1550nm 1525-1575nm) | dB/km | ≤0.03 |
| 10 | Attenuation and wavelength (1550nm 1480-1580nm) | dB/km | ≤0.05 |
| 11 | Dispersion (1288-1339nm) | ps/(nm.km) | ≥-3.5, ≤3.5 |
| 11 | Dispersion (1271-1360nm) | ps/(nm.km) | ≥-5.3, ≤5.3 |
| 11 | Dispersion (1480-1580nm) | ps/(nm.km) | ≤20 |
| 11 | Dispersion (1550nm) | ps/(nm.km) | ≤18 |
| 12 | Zero dispersion wavelength | Nm | 1300-1324 |
| 13 | Zero dispersion slope | ps/(nm2•km) | ≤0.092 |
| 14 | Typical value | ps/(nm2•km) | 0.04 |
| 15 | Largest individual fiber | Ps/√ km | 0.2 |
| 16 | Link design values | Ps/√ km | 0.1 |
| 17 | Two way average (1310nm-1550) | dB | ≤0.01dB |
COMPANY Fiber cable name N*cores G.652D 2024 XXXXm
The marking is printed every 1 meter; "G.652D" means ITU-T Rec. Low Water Peak (LWP) G.652 single mode optical fiber.
Custom marking available according to client requirements.
